◆ 개요 (Description)

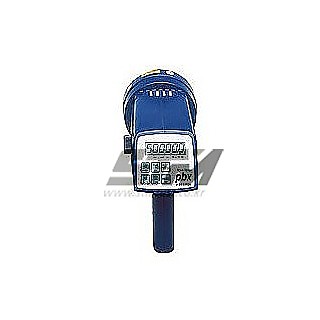

▶ 기종 PB (Phaser Strobe) 업그레이드 제품

▶ FPM 및 Flash 광량 향상

▶ 측정 범위: 30 to 50,000 RPM(FPM)

▶ 광량: 230mJoule up to 3450 FPM

▶ 디지털 화면표시 및 knob로 Flash 조절

▶ 저장 기능, flashes per minute(FPM) or flashes per second(FPS) 선택기능

▶ 외부 센서 연결 가능 (Remote Tachometer Sensor)　

◆ 기술사양 (Technical data)

▷ 측정범위(Flash Range): 30-50,000 FPM (Flashes/Minute) 0.5-830 FPS (Flashes/Sec) (Hz)

▷ 정밀도(Accuracy): ±0.002% of Setting +/- least significant digit

▷ 조절 노부(Digital Adjustment Knob): 36 detents per revolution and blinking decade selection

▷ 분해능(Flash Rate Resolution): 0.01 to 1.0 FPM (Menu Selectable) (Internal Triggering)

▷ 상(相)조절(Phase

▷ Delay – Degrees): 0.1 to 359.9 degrees

▷ 시간 조정(Time Delay – Seconds): 0.01 to 1000 msec.

▷ 相회전 모션Virtual RPM (Slow Motion): 0-200 VRPM

▷ 광량(Flash Energy -Typical): 230mJoule up to 3450 FPM

▷ 플래시 속도 조절(Flash Duration -Typical): 8-20 usec

▷ 전력 소모량(Average Power – Watts): 11W @ 3000 FPM; >13W @ 3450 FPM

▷ 타코메타 모드(Tachometer Mode): 5-250,000 RPM from external trigger

▷ 외부 입력(External Input): Input Pulse - 0.5 usec min, TTL to 24V max (1/8" phone plug)

▷ 트리거 출력 및 센서 입력(출력Trigger Output/Remote Sync): 3.3V TTL Compatible 40 usec pulse-Positive/Negative

▷ 사용전원(Power): Internal rechargeable batteries with AC power
