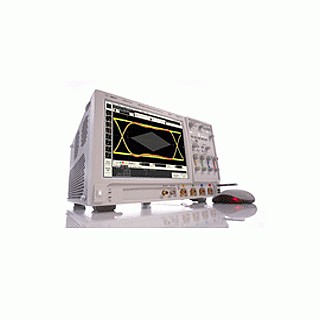

Engineered for the broadest measurement capability

• 1 GHz bandwidth
• 4 analog channels
• 20 GSa/s max. sample rate
• Standard 10 Mpts per channel memory, upgradeable to 1 Gpts

Get three instruments in one

• Scope: The powerful features of our Infiniium Series oscilloscopes with InfiniiScan advanced triggering coupled with superior specifications give you precise signal representation
• Logic Analyzer: Add 16 integrated, deep-memory digital channels to see critical data values and timing relationships. Choose MSO9104A
• Protocol analyzer: Choose integrated protocol viewers to quickly drill down into packets and time correlate between protocol and physical layers.

Widest range of debug and compliance software applications

• Serial protocol applications including I²C, SPI, RS-232, CAN, and Flexray
• Serial physical layer applications including Ethernet
• Jitter analysis applications including EZJIT and EZJIT Plus
• Viewing and analysis applications
