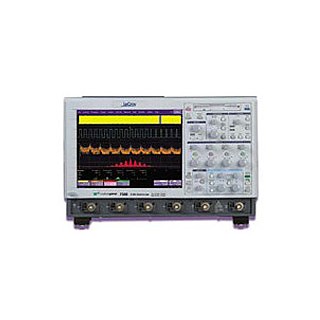

Digital Oscilloscope / WaveRunner 6100A 요약정보 및 구매

제조사	Lecroy
브랜드	Lecroy
판매가격	전화문의
배송비결제	주문시 결제

상품 정보

상품정보
상품문의 0
배송 및 반품정보
관련상품 0

상품 상세설명

Spec 및 특 성

Quick Specs

350 MHz to 2 GHz Bandwidth
up to 10 GS/s
4 Mpts/Ch standard memory
Uncommon capabilities - right out of the box
Efficient User Interface

모델명	WaveRunner 6030A	WaveRunner 6050A	WaveRunner 6051A	WaveRunner 6100A	WaveRunner 6200A
대역폭	350 MHz	500 MHz	500 MHz	1 GHz	2 GHz
상승시간 (typical)	1 ns	750 ps	750 ps	400 ps	225 ps
채널수	4	4	2	4	4
싱글 샷 샘플 속도	5 GS/s	5 GS/s	5 GS/s	5 GS/s	5 GS/s
반복샘플 속도(RIS)	200 GS/s	200 GS/s	200 GS/s	200 GS/s	200 GS/s
수직 분해능	8 bits; up to 11 with enhanced resolution (ERES)	8 bits; up to 11 with enhanced resolution (ERES)	8 bits; up to 11 with enhanced resolution (ERES)	8 bits; up to 11 with enhanced resolution (ERES)	8 bits; up to 11 with enhanced resolution (ERES)
주파수 제한	20 MHz; 200 MHz	20 MHz; 200 MHz	20 MHz; 200 MHz	20 MHz; 200 MHz	20 MHz; 200 MHz
최대 입력 전압	50Ω : 5 Vrms, 1MΩ : 250 V max (Peak AC : <= 10 kHz + DC)	50Ω : 5 Vrms, 1MΩ : 250 V max (Peak AC : ≤ 10 kHz + DC)	50Ω : 5 Vrms, 1MΩ : 250 V max (Peak AC : <= 10 kHz + DC)	50Ω : 5 Vrms, 1MΩ : 250 V max (Peak AC : ≤ 10 kHz + DC)	50Ω : 5 Vrms, 1MΩ : 250 V max (Peak AC : ≤ 10 kHz + DC)
입력 임피던스	1MΩ \|\| <20pF (10MΩ \|\| 9.5 pF using PP007-WR probe)	1MΩ \|\| <20pF (10MΩ \|\| 9.5 pF using PP007-WR probe)	1MΩ \|\| <20pF (10MΩ \|\| 9.5 pF using PP007-WR probe)	1MΩ \|\| <20pF (10MΩ \|\| 9.5 pF using PP007-WR probe)	1MΩ \|\| <20pF (10MΩ \|\| 9.5 pF using PP007-WR probe)
입력 커플링	50Ω : DC	50Ω : DC	50Ω : DC	50Ω : DC	50Ω : DC
입력 커플링	1MΩ : AC,DC,GND	1MΩ : AC,DC,GND	1MΩ : AC,DC,GND	1MΩ : AC,DC,GND	1MΩ : AC,DC,GND

WaveRunner 6000A Series Oscilloscope

The WaveRunner 6000A Series is the best oscilloscope for everyday signal testing. Its remarkable functionality includes the following capabilities:

acquisition technology that delivers measurements you can trust
an efficient interface that feels just right to the busy engineer
uncommon capabilities-right out of the box
a platform for building on even more functionality

A Rich Feature Set is Standard

The WaveRunner 6000A Series is an everyday bench scope with true "lab instrument" capabilities. This series offers:

Bandwidths from 350 MHz to 2 GHz
Sample rates of 2.5 to 10 GS/s
Standard memory of 4 Mpts/Ch
All channels expandable to 12 Mpts
Up to 24 Mpts when interleaved

Most importantly, these features are delivered at a price far below other oscilloscopes in this class.

Outstanding Signal Fidelity

The WaveRunner 6000A Series is powered by the same SiGe chipset that is used in LeCroy's higher bandwidth WaveMaster oscilloscopes.

High sample rate captures high frequency transients and sharp edges
Very low residual jitter (2 ps typical)
Includes ultra-stable clock (? ppm)

This outstanding performance gives you timing resolution that rivals oscilloscopes that cost twice as much.

Windows® XP Operating System

The open Windows XP operating system allows you to install Windows application software to analyze waveform data directly in the oscilloscope, eliminating the need for processing in another PC.

5 GS/s on Each Channel – See Details Others Miss

The WaveRunner 6000A is a true 4 channel instrument-you can sample at a full 5 GS/s on each channel. Other oscilloscopes can only use a single channel at 5 GS/s or 1/4 that rate when using all four channels. WaveRunner 6000A offers more than Nyquist sample rate on each channel.

SMARTTrigger™ Makes the Most of Your Long Memory

The WaveRunner 6000A SMART Trigger provides the flexibility to quickly trigger and locate the specific signal characteristic or pattern you want. Trigger on abnormal signals at the touch of a button.

Exclusion/inclusion feature triggers on signals outside, or within, a specific range of pulse widths.
Selecting multiple threshold levels and pulse widths quickly catches the waveform for viewing and measuring.
Memory retains thousands of acquired events for viewing at your leisure.
Replay signal history, scan, and search from sweep to sweep.
