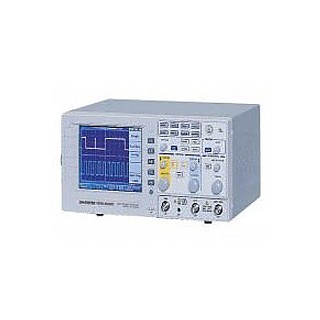

| FEATURES | 150MHz Bandwidth With Color LCD Display 125k Long Memory and 12 Division Horizontal Display 25GS/s Sampling Rate for Repetitive Waveforms Advanced Trigger:Pulse Width,TV Line,Event Delay And Time Delay Go-NoGo and Auto Setup Sequence FFT Function Built-In Help Manual, Multi-Language and PC Software Standard Interface: USB, RS-232C, Printer Port, Go/NoGo Output Option: GPIB Interface |
| |
DISPLAY SYSTEM | Display Device
| Color (320 x 240)
5.7 inch LCD | | Display Contrast | Adjustable | | Waveform Display Graticule | 8×10 divisions ( 8 x 12 div, when menu off )
| Display Mode
| Dot, Vector, Accumulate | VERTICAL SYSTEM | | Bandwidth | 150MHz | Channels
| 2 | | Vertical Resolution | 8-Bit | | Vertical Sensitivity | 2mV/div ~ 5V/div | | Vertical Accuracy | ±3% | | Rise Time | ＜2.3ns | | Input Coupling | AC、DC、Ground | | Input Impedance | 1MΩ ±2%, ~ 22pF | | Polarity | Positive & Negative | | Maximum Voltage Between Signal & Common at Input BNC | 300V ( DC+AC peak ), CATII | | Waveform Signal Process | CH1+CH2、CH1-CH2、FFT | | Offset Range | 2mV/div ~ 50mV/div：±0.5V;
100mV/div ~ 500mV/div：±5V;
1V/div ~ 5V/div：±50V | | BW Limit | 20MHz ( -3dB ) | HORIZONTAL SYSTEM | | Time Base Range | 1ns/div ~ 10s/div ; Roll : 250ms/div~10s/div | Time Base Mode
| Main、Window、Window Zoom、Roll、X-Y | | Time Base Accuracy | ±0.01% | | Delay Range | Pre-trigger : 20 div maximum; Post-trigger : 1000 div | SIGNAL ACQUISITION SYSTEM
| | Real-Time Sample Rate | 100MS/s maximum on each channel | Equivalent Sample Rate
| 25GS/s E.T. maximum on each channel | | Record Length | 125k/CH | | Peak Detection | 10ns (500ns/div~10s/div) | Acquisition Mode
| Sample、Peak Detect、Average | Average
| 2, 4, 8, 16, 32, 64, 128, 256 | TRIGGER
| Trigger Source
| CH1, CH2, Line, Ext | | Mode | Auto Level、Auto、Normal、Single、TV、Time Delay、Event Delay、Edge、Pulse Width | Coupling
| AC, DC, HF, LF, Noise Reject | Sensitivity
| DC~30MHz : 0.5div or 5mV
30MHz~150MHz : Approx 1.5div or 15mV | X-Y MODE
| | X-Axis Input / Y-Axis Input | Channel 1 / Channel 2 | Phase Shift
| ±3° at 100kHz | | CURSOR & MEASUREMENT | | | Auto Voltage Measurement | Vpp，Vamp，Vavg，Vrms，Vhi，Vlo，Vmax，Vmin | Auto Time Measurement
| Freq, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle | Cursor Measurement
| Voltage difference between cursors(ΔV),
Time difference between cursors(ΔT),
Reciprocal of ΔT in hertz(1/ΔT) | FREQUENCY COUNTER
| | Readout Resolution
| Max. 6 digits | | Frequency Range | AC Coupled, 20Hz to rated bandwidth; resolution : 10Hz
| Signal Source
| All available trigger source except the Pulse Width & Video Trigger mode | | EXTERNAL TRIGGER | | Range
| ±15V | Sensitivity
| DC~30MHz : ~50mV ; 30~150MHz：~100mV | | Input Impedance | 1MΩ±2%, ~ 22pF | Maximum Input
| 300V ( DC+AC peak ) , CATII | | CONTROL PANEL FUNCTION | | AutoSet
| "Autoset" can adjust Vertical ( Volt/div ), Horizontal ( Sec/div ) and Trigger level automatically | | Save/Recall | Up to 15 sets of measurement conditions can be saved and recalled | | Waveform Trace Save/Recall | 2 sets of waveform can be saved and recalled
| | INTERFACE | | Standard
| USB, RS-232C, Printer Port, Go/NoGo Output | Option
| GPIB | POWER SOURCE
| | | 100V ~ 240V AC 47Hz ~ 63Hz, Auto selection | ACCESSORIES
| | Instruction manual x 1, Power Cord x 1
GDS-820 Series: GTP-150A Probe(10:1/1:1) x 2 | | DIMENSIONS &WEIGHT | | | 310(W) x 142(H) x 254(D)mm
Approx. 4.1kg |
| | Inquiry | Model | Name | Descripation | | GTL-242 | USB Cable | For: GDS-800 Series, GDS-2000 Series | | GSC-005 | Soft Carrying Case | For: GDS-800 Series, GDS-2000 Series | | GTC-002 | Instrument Cart | 30kg Loading, 120V Input, 330(W) x 430(D) mm For GDS,GOS,GRS Series | | GTC-001 | Instrument Cart | 30kg Loading, 120V Input , 450(W) x 430(D)mm For GDS,GOS,GRS Series | | GRA-405 | Rack Adapter Panel | Rack Mounting 19”, 4u / For: GDS-800 Series, GDS-2000 Series | | GTP-150A | Probe | 10:1 DC~150MHz, 1:1 DC~6MHz For GDS-820C/820S | | GTL-232 | RS-232C Cable | For: GDS-800 Series, GDS-800 Series, GRS-6032A/6052A, SFG-830, LCR-816/817/819/821, PSM Series | | GTL-110 | Test Lead | BNC Female - BNC Female For: GDS-800 Series, GDS-2000 Series, GFC-8131H/8270H, GRG-450B, GSG-120/122, SFG-830 |
|
|
|
