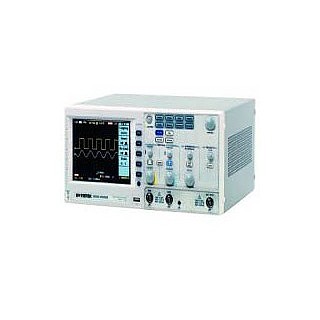

Digital Oscilloscope. / GDS-2102 요약정보 및 구매

제조사 GW_INSTEK
브랜드 GW_INSTEK
판매가격 전화문의
배송비결제 주문시 결제
  • 카탈로그
  • 메뉴얼
  • 프로그램
  • 드라이버
  • 데이터시트

상품 정보

상품 상세설명

100 MHz Bandwidth 2 Input Channels 1GSa/s Real-Time and 25GSa/s Equivalent-Time Sampling 25k Points Record Length Maximum Large 5.6-in TFT Color Display USB Host/Device: Support USB Printer and USB Flash Drive Battery Operation (optional) Color Printout
SPECIFICATIONS

VERTICAL

Channels 2
BandwidthDC ~ 100MHz (-3dB)
Rise Time3.5ns Approx.
Sensitivity2mV/div ~ 5V/div (1-2-5 increments)
Accuracy
±(3% x |Readout|+0.05 div x Volts/div+0.8mV)
Input CouplingAC, DC & Ground
Input Impedance
1M±2%, ~16pF
PolarityNormal & Invert
Maximum Input
300V (DC+AC peak), CATII
Waveform Signal Process+ , - , FFT
Offset Range
2mV/div ~ 20mV/div : 0.5V ; 50mV/div ~ 200mV/div : 5V ; 500mV/div ~ 2V/div : 50V ; 5V/div : 300V
Bandwidth Limit 20MHz (-3dB)

TRIGGER

Sources CH1 , CH2 , Line , EXT
Modes
Auto-Level, AUTO, NORMAL, SINGLE, TV, Edge, Pulse Width Time-delay, Event-delay
CouplingAC , DC , LF rej. , HF rej. , Noise rej.
SensitivityDC ~ 25MHz : Approx. 0.5div or 5mV
25MHz ~ 100MHz : Approx. 1div or 10mV

EXT TRIGGER

Range15V
SensitivityDC ~ 30MHz : ~ 50mV ; 30M ~ 100MHz : ~100mV
Input Impedance1MΩ±2% , ~ 16pF
Maximum Input300V (DC AC peak) , CATII

HORIZONTAL

Range1ns/div ~ 10s/div (1-2-5 increments); ROLL : 250ms/div ~ 10s/div
ModesMAIN, WINDOW, WINDOW ZOOM, ROLL, SCAN, X-Y
Accuracy±0.01%
Pre-Trigger20 div maximum
Post-Trigger1000 div

X-Y MODE

X-Axis InputChannel 1
Y-Axis Input
Channel 2
Phase Shift±3° at 100kHz

SIGNAL ACQUISITION

Real-Time Sample Rate1GSa/s maximum
Equivalent Sample Rate 25GSa/s maximum
Vertical Resolution8 Bits
Record Length25K Dots maximum
Acquisition Mode
Normal, Peak Detect, Average
Peak Detection
10ns
Average
2 , 4 , 8 , 16 , 32 , 64 , 128 , 256

CURSORS AND MEASUREMENT

Voltage MeasurementVpp , Vamp , V avg , Vrms , Vhi , Vlo , Vmax , Vmin , Rise Preshoot/ Overshoot , Fall Preshoot/Overshoot
Time MeasurementFreq , Period , Rise Time , Fall Time , Positive Width , NegativeWidth , Duty Cycle
Delay Measurement
Eight different delay measurement
Cursors MeasurementVoltage difference between cursors (ΔV) Time difference between cursors (ΔT)
Auto Counter
Resolution : 6 digits
Accuracy : ±2%
Signal Source: All available trigger source except the Video trigger mode

CONTROL PANEL FUNCTION

AutosetAdjust Vertical VOLT/DIV, Horizontal TIME/DIV, and Trigger level automatically
Save SetupUp to 20 sets of measurement conditions
Save Waveform
24 sets of waveform

DISPLAY

TFT LCD Type5.6 inch
Display Resolution
234 (Vertically) x 320 (Horizontally) Dots
Display Graticule
8 x 10 divisions ; 8 x 12 divisions (menu off)
Display Brightness
Adjustable

INTERFACE

Go/NoGo Output5V Maximum/10mA TTL Open Collector Output
RS-232 InterfaceDB 9-pin male DTE RS-232 interface
GPIB Interface (Option)Fully programmable with IEEE 488.2 compliance
USBUSB Host/Device 2.0 full speed supported

POWER SOURCE

Line Voltage Range
AC 100V ~ 240V , 48Hz ~ 63Hz , Auto selection
Battery Power(Option)
Battery : 11.1V Li-Ion battery pack
Charge Time : 8 hours (Power ON)
Operating Time : 3 hours , depending on operating condition

MISCELLANEOUS

Multi-Language Menu Available
Online HelpAvailable
Time ClockTime and Date, Provide the Date/Time for saved data
DIMENSIONS &WEIGHT
254D x 142H x 310W(mm)
Approx. 4.3kg
OPTION
InquiryModelNameDescripation
GTP-100AProbe10:1 DC~100MHz, 1:1 DC~6MHz / GDS-810 Series
