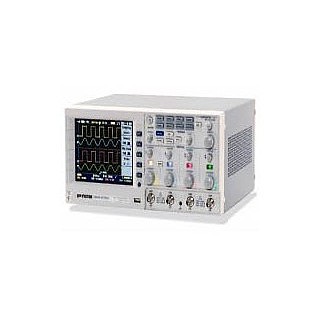

| FEATURES | 200 MHz Bandwidth 4 Input Channels 1GSa/s Real-Time and 25GSa/s Equivalent-Time Sampling 25k Points Record Length Maximum Large 5.6-in TFT Color Display USB Host/Device: Support USB Printer and USB Flash Drive Battery Operation (optional) Color Printout |
| |
VERTICAL | | Channels | 4 | | Bandwidth | DC ~ 200MHz (-3dB) | | Rise Time | 1.75ns Approx. | | Sensitivity | 2mV/div ~ 5V/div (1-2-5 increments) | Accuracy
| ±(3% x |Readout|+0.05 div x Volts/div+0.8mV) | | Input Coupling | AC, DC & Ground | Input Impedance
| 1M±2%, ~16pF | | Polarity | Normal & Invert | Maximum Input
| 300V (DC+AC peak), CATII | | Waveform Signal Process | + , - , FFT | Offset Range
| 2mV/div ~ 20mV/div : 0.5V ; 50mV/div ~ 200mV/div : 5V ; 500mV/div ~ 2V/div : 50V ; 5V/div : 300V | | Bandwidth Limit | 20MHz (-3dB) | TRIGGER | | Sources | CH1 , CH2 , CH3 , CH4 , Line | Modes
| Auto-Level, AUTO, NORMAL, SINGLE, TV, Edge | | Coupling | AC , DC , LF rej. , HF rej. , Noise rej. | | Sensitivity | DC ~ 25MHz : Approx. 0.5div or 5mV
25MHz ~ 200MHz : Approx. 1div or 10mV | HORIZONTAL | | Range | 1ns/div ~ 10s/div (1-2-5 increments); ROLL : 250ms/div ~ 10s/div | | Modes | MAIN, WINDOW, WINDOW ZOOM, ROLL, SCAN, X-Y | | Accuracy | ±0.01% | | Pre-Trigger | 20 div maximum | | Post-Trigger | 1000 div | X-Y MODE | | X-Axis Input | Channel 1 | Y-Axis Input
| Channel 2 | | Phase Shift | ±3° at 100kHz | SIGNAL ACQUISITION
| | Real-Time Sample Rate | 1GSa/s maximum | Equivalent Sample Rate
| 25GSa/s maximum | | Vertical Resolution | 8 Bits | | Record Length | 25K Dots maximum | Acquisition Mode
| Normal, Peak Detect, Average | Peak Detection
| 10ns | Average
| 2 , 4 , 8 , 16 , 32 , 64 , 128 , 256 | CURSORS AND MEASUREMENT | | Voltage Measurement | Vpp , Vamp , V avg , Vrms , Vhi , Vlo , Vmax , Vmin , Rise Preshoot/ Overshoot , Fall Preshoot/Overshoot | | Time Measurement | Freq , Period , Rise Time , Fall Time , Positive Width , NegativeWidth , Duty Cycle | Delay Measurement
| Eight different delay measurement | | Cursors Measurement | Voltage difference between cursors (ΔV) Time difference between cursors (ΔT) | Auto Counter
| Resolution : 6 digits
Accuracy : ±2%
Signal Source: All available trigger source except the Video trigger mode | CONTROL PANEL FUNCTION
| | Autoset | Adjust Vertical VOLT/DIV, Horizontal TIME/DIV, and Trigger level automatically | | Save Setup | Up to 20 sets of measurement conditions | Save Waveform
| 24 sets of waveform | DISPLAY
| | TFT LCD Type | 5.6 inch | Display Resolution
| 234 (Vertically) x 320 (Horizontally) Dots | Display Graticule
| 8 x 10 divisions ; 8 x 12 divisions (menu off) | Display Brightness
| Adjustable | INTERFACE
| | Go/NoGo Output | 5V Maximum/10mA TTL Open Collector Output | | RS-232 Interface | DB 9-pin male DTE RS-232 interface | | GPIB Interface (Option) | Fully programmable with IEEE 488.2 compliance | | USB | USB Host/Device 2.0 full speed supported | POWER SOURCE
| Line Voltage Range
| AC 100V ~ 240V , 48Hz ~ 63Hz , Auto selection | Battery Power(Option)
| Battery : 11.1V Li-Ion battery pack
Charge Time : 8 hours (Power ON)
Operating Time : 3 hours , depending on operating condition | MISCELLANEOUS
| | Multi-Language Menu | Available | | Online Help | Available | | Time Clock | Time and Date, Provide the Date/Time for saved data | | DIMENSIONS &WEIGHT | | | 254D x 142H x 310W(mm)
Approx. 4.3kg |
| | Inquiry | Model | Name | Descripation | | GTL-242 | USB Cable | For: GDS-800 Series, GDS-2000 Series | | GSC-005 | Soft Carrying Case | For: GDS-800 Series, GDS-2000 Series | | GTC-002 | Instrument Cart | 30kg Loading, 120V Input, 330(W) x 430(D) mm For GDS,GOS,GRS Series | | GTC-001 | Instrument Cart | 30kg Loading, 120V Input , 450(W) x 430(D)mm For GDS,GOS,GRS Series | | GRA-405 | Rack Adapter Panel | Rack Mounting 19”, 4u / For: GDS-800 Series, GDS-2000 Series | | GTP-250A | Probe | 10:1 DC~250MHz, 1:1 DC~6MHz For GDS-840C/840S/2202/2204 | | GTL-232 | RS-232C Cable | For: GDS-800 Series, GDS-800 Series, GRS-6032A/6052A, SFG-830, LCR-816/817/819/821, PSM Series | | GTL-110 | Test Lead | BNC Female - BNC Female For: GDS-800 Series, GDS-2000 Series, GFC-8131H/8270H, GRG-450B, GSG-120/122, SFG-830 |
|
|
|
