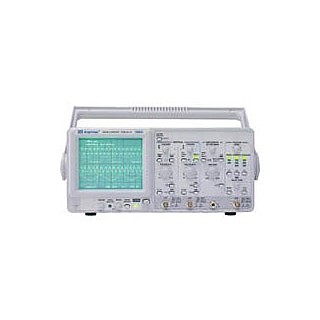

100MHz Bandwidth, Dual Channel, Delayed Sweep Cursor Readout with 7 Measurements Panel Setup Lock of Digital-Control Functions Buzzer Alarm LED Indicators TV Synchronization Trigger Signal Output Z-Axis Modulation Input SMD Technology, High Stability and Reliability |
| |
CRT
| | Type | 6-inch rectangular type with internal graticule;
0%, 10%, 90% and 100% markers.
8 x 10 div (1 div = 1 cm) | | Accelerating Potential | 12 kV approx. | | Z-axis input | Coupling : DC
Sensitivity: 5V or more
Maximum input voltage : 30V (DC + AC peak) at 1kHz or less
Bandwidth : DC ~ 5 MHz | VERTICAL SYSTEM
| | Sensitivity | 2mV~5V/div, 11 step in 1-2-5 sequence | | Sensitivity Accuracy | ≦3% (5div at the center of display) | | Vernier Vertical Sensitivity | Continuously variable to 1/2.5 or less of panel-indicate value | | Bandwidth(-3dB) | DC~100MHz(2mV/div:DC~20MHz) | | Rise Time | 3.5ns (2mV/div:17.5ns) | | Signal Delay | Leading edge can be monitored | | Max. Input Voltage | 400V(DC+AC peak) at 1kHz or less | | Input Coupling | AC, DC, GND | | Input Impedance | 1MΩ±2% // approx. 25pF | | Vertical Mode | CH1,CH2,DUAL(CHOP/ALT), ADD, CH2 INV. | | Bandwidth Limited | 20MHz | | Common-Mode Rejection Ratio | 50:1 or better at 50kHz | | Dynamic Range | 8 div at 60MHz
5 div at 100MHz | HORIZONTAL SYSTEM | Horizontal Modes
| MAIN(A), ALT, DELAY(B) | | A(main) Sweep Time | 50ns~0.5s/div, continuously variable (UNCAL) | | B(delay) Sweep Time | 50ns~50ms/div | | Accuracy | ±3% (±5% at x 10 MAG) | | Sweep Magnification | x 10 (maximum sweep time 5nS/div) | | Hold Off Time | Variable | | Delay Time | 1μs~5s | | Delay Jitter | Better than 1:20000 | | Alternate Separation | Variable | TRIGGER | Trigger Modes
| AUTO, NORM,TV | | Trigger Source | CH1, CH2, LINE, EXT | | Trigger Coupling | AC, DC, HFR, LFR | | Trigger Slope | "+" or "-" polarity or TVsync polarity | | Trigger Sensitivity | | Mode | Frequency | INT | EXT | | AUTO | 10Hz~20MHz
20MHz~100MHz | 0.35div
1.5div | 50mV
150mV | | NORM | DC~20MHz
20MHz~100MHz | 0.35div
1.5div | 50mV
150mV | | TV | sync singnal | 1div | 200mVpp |
| | TV sync | TV-V, TV-H | | Max. External Input Voltage | 400V(DC+AC peak) at 1kHz | | External Input Impedance | 1MΩ±5% // approx.25pF | X-Y OPERATION
| | Mode | X-axis: selectable CH1, CH2, EXT
Y-axis: selectable CH1, CH2, CH1 and CH2 | | Sensitivity Accuracy | 2mV~5V/div±3% ; EXT : 0.1V/div±5% | | X-axis Bandwidth | DC~500kHz(-3dB) | | Phase Error | 3° or less from DC~50kHz | OUTPUT SIGNAL | Trigger Signal Output
| Voltage: approx. 25mV/div into 50Ω
Frequency response : DC ~ 10MHz | | Calibrator Output | 1kHz Square wave, 2Vpp±2% | CURSOR READOUT FUNCTION | | Cursor Measurement Function | ΔV, ΔV%, ΔVdB, ΔT, 1/ ΔT, ΔT%, Δθ | | Cursor Resolution | 1/100 DIV | | Effective Cursor Range | Vertical: ±3div ; Horizontal: ±4 div | | Panel Setting Display | Vertical: V/div(CH1,CH2),UNCAL,ALT/CHOP/ADD,INV, probe factor,AC/DC/GND
Horizontal: s/div(MTB, DTB), UNCAL, x 10MAG, delay time , HO
Trigger: source, coupling, slope, level, TV-V, TV-H | SPECIAL FUNCTION | | Panel Setups Lock | Provided | | POWER SOURCE | | | AC 100V/120V/230V±10% , 50/60Hz | ACCESSORIES
| | Instruction manual x 1
Power cord x 1
LF-210E Probe (10:1/1:1) x 2 | | DIMENSIONS & WEIGHT | | | 310(W) x 150(H) x 455(D) mm
Approx. 9kg |
