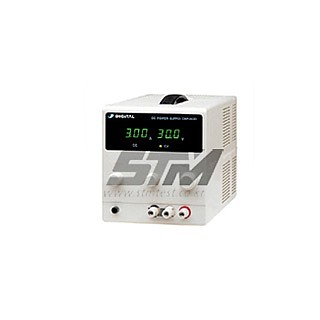

| DRP-305D | DRP-303A | DRP-185D | DRP-185A | |
OUTPUT VOLTAGE | 0~30V continuously variable | 0~18V continuously variable | |||
OUTPUT POLARITY | Posistive and Negative | ||||
OUTPUT CURRENT | 0~5A | 0~5A | |||
RIPPLE VOLTAGE | Low ripple : ≤ 1 mVrms | ||||
LINE REGULATION | Less than 0.01%+2mV for power source voltage change of ±10% | ||||
LOAD REGULATION | Less than 0.01%+3mV for load variation of 0 to 100% | ||||
VOLTMETER ACCURACY | ±(1% of rdg+1digit) | 2.5% of full scale | ±(1% of rdg+1digit) | 2.5% of full scale | |
AMPEREMETER ACCURACY | ±(1% of rdg+1digit) | 2.5% of full scale | ±(1% of rdg+1digit) | 2.5% of full scale | |
INSULATION | Between chassis and output : more than 10㏁ at DC500V Between chassis and AC plug : more than 50㏁ at DC500V | ||||
COMPENSATION/PROTECTION | Overload protection circuit of constant self-restoring type | ||||
AMBIENT TEMPERATURE RANGE | 5℃ ~ 40℃ | ||||
POWER SOURCE | AC 220V, 230V 50/60㎐ (Option: AC 100V, 110V) | ||||
DIMENSION(W×D×H), mm | 130×255×150 | ||||
WEIGHT(kg) | 6㎏ | ||||
ACCESSORIES | Short circuit bar, Fuse, Power cord, Test Lead, Manual | ||||
Other Model | DRP-305/DN, DRP-503/DN |
