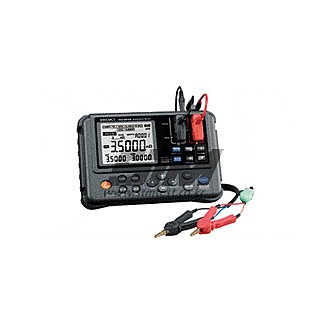

· 기본 정확도 0.02 %, 최소 분해능 0.1μΩ 최대 측정 전류 1A
· 0.0 uΩ~ 3.5MΩ 의 넓은 측정범위
·
프로브를 대는 것만으로, 메모리 1,000 개까지 쉽게 기록
· 인터벌 측정으로 온도 상승 시험 등의 데이터를 원활하게 수집
·
휴대성이 용이하여 대형 장비 유지보수 및 검사에 최적
Basic specifications
Resistance range | 3 mΩ (3.5000 mΩ display Max., 0.1 μΩ resolution)
to 3 MΩ range (3.5000 MΩ display Max., 100 Ω resolution), 10
steps Measurement accuracy: ±0.020 % rdg. ±0.007 % f.s. |
Testing current | [at 3 mΩ range] 1 A DC to [at 3 MΩ range] 500 nA DC |
Open-terminal voltage | 5.5 V DC max. |
Temperature measurement | -10.0 to 99.9°C, accuracy: ±0.50°C (Temperature Sensor Z2002 and RM3548 combined accuracy) |
Measurement speed | Fixed |
Display refresh rate | Without OVC: approx. 100ms, With OVC: approx. 230ms |
Functions | Temperature correction, temperature conversion, offset voltage compensation (OVC), comparator (ABS/REF%), length c onversion, j udgment sound setting, auto hold, auto power save (APS) |
Memory storage | Number of recordable data points: (manual/auto) Up to 1,000, (interval) Up to 6,000; Interval: 0.2 to 10.0s (0.2s steps); Acquisition of data from memory: display, USB mass storage (CSV, TXT files) |
Other functions | Averaging, panel store/panel load, USB communication interface (RM3548 internal memory is recognized as a mass storage device when connected to a PC.) |
Power supply | LR6 (AA) Alkaline batteries ×8, Continuous use: 10 hours (Under our company’s conditions), Rated power consumption: 5 VA |
Dimensions, mass | 192 mm (7.56 in) W × 121 mm (4.76 in) H × 55 mm (2.17 in) D mm, 770 g (27.2 oz) |

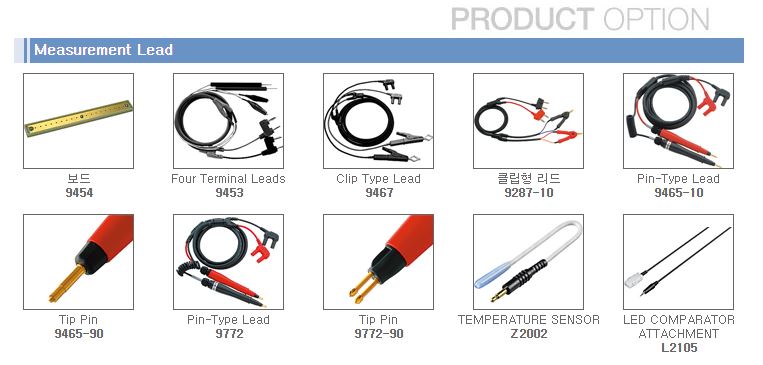

Supplied accessories | Clip type lead 9287-10 ×1, Temperature sensor Z2002 ×1, LR6 Alkaline battery ×8, Instruction manual ×1, USB Cable(A-to-mini B type) ×1, Strap ×1, Extra fuse ×1 |
