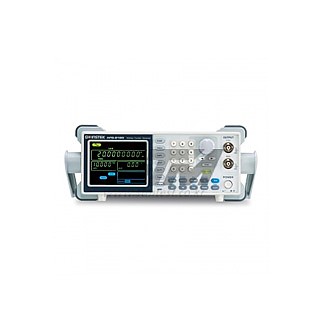

The AFG-2100/2000 Series Arbitrary Function Generator is a DDS (Direct Digital Synthesized) based signal generator designed to accommodate the Educational and Basic Industrial requirements for an accurate and affordable signal source covering the output of Sine, Square (Pulse), Ramp (Triangle), Noise and Arbitrary waveforms. The 20M Sa/s sampling rate, 10 bit vertical resolution and 4k point memory of the AFG-2100/2000 Series provide user with a flexible environment for creating the specific waveform output as needed. The 0.1Hz resolution of Sine, Square and Triangle waveforms and the 1% ~ 99% adjustable duty cycle of Square (Pulse) waveform are the remarkable features to greatly extend its application range in various fields. The AFG-2100/2000 Series includes 6 models in three frequency bands of 5MHz, 12MHz and 25MHz. Besides the basic features of the whole AFG-2100/2000 Series, AFG-2100 also carries additional features of AM/FM/FSK Modulation, Sweep, and Frequency Counter.

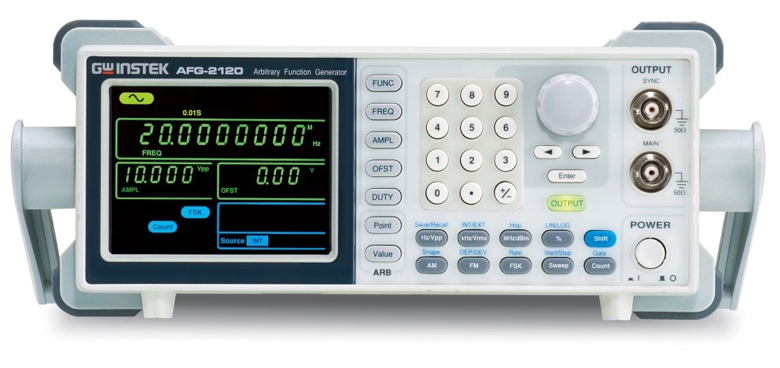

The user friendly interface of AFG-2100/2000 Series allows user to set waveform parameters, including waveform type, frequency, amplitude, DC offset, modulation type, and duty cycle, through keypad entry and/or the knob selection, and display the set parameters on the 3.5” LCD screen. The AFG-2100/2000 Series is equipped with a USB Device interface for remote control and waveform editing through a PC. A waveform editing software is provided to facilitate the waveform creation on the PC. After the waveform editing is done, the user is able to download the waveform data from PC to the AFG-2100/2000 Series for signal output.

Models

AFG-2000 series

AFG-2100 Series

AFG-2005

AFG-2012

AFG-2025

AFG-2105

AFG-2112

AFG-2125

Waveforms

Sine, Square, Ramp, Noise, Arbitrary Waveform

Arbitrary Waveform

Sample Rate

20 MSa/s

Repetition Rate

10MHz

Waveform Length

4k points

Amplitude Resolution

10 bit

Non-Volatile Memory

4k points

Frequency Characteristics

Range

Sine, Square

0.1Hz~5MHz

0.1Hz~12MHz

0.1Hz~25MHz

0.1Hz~5MHz

0.1Hz~12MHz

0.1Hz~25MHz

Ramp

0.1Hz~1MHz

Resolution

Sine, Square, Ramp

0.1Hz

Accuracy

Stability

±20 ppm

Aging

±1 ppm, per 1 year

Tolerance

≦ 1 mHz

Output Characteristics

Amplitude

Range

1 mVpp to 10 Vpp(into 50Ω), 0.1Hz～20MHz
2 mVpp to 20 Vpp(open-circuit) , 0.1Hz～20MHz
1 mVpp to 5 Vpp(into 50Ω), 20MHz～25MHz
2 mVpp to 10 Vpp(open-circuit), 20MHz～25MHz

Accuracy

± 2% of setting ±1 mVpp (at 1 kHz,>10 mVpp)

Resolution

1 mV or 3 digits

Flatness

± 1% (0.1dB) ≦100kHz
± 3% (0.3 dB) ≦5MHz
± 4% (0.4 dB) ≦12MHz
± 20% (2 dB) ≦20MHz
± 5% (0.4 dB) ≦25MHz
(sine wave relative to 1 kHz)

Units

Vpp, Vrms, dBm

Offset

Range

±5 Vpk ac +dc (into 50Ω)
±10Vpk ac +dc (Open circuit)
±2.5 Vpk ac +dc (into 50Ω) for 20MHz-25MHz
±5Vpk ac +dc (Open circuit) for 20MHz-25MHz

Accuracy

2% of setting + 5 mV+ 0.5% of amplitude

Output

Impedance

50Ω typical (fixed) > 300kΩ (output disabled)

Protection (main output)

Short-circuit protected by overload relay automatically disables output

SYNC Output

Level

TTL-compatible into>1kΩ

Impedance

50Ω nominal

Rise or Fall Time

≦25ns

Sine wave Characteristics

Harmonic Distortion

–55 dBc DC ~ 200kHz, Ampl > 0.1Vpp
–50 dBc 200kHz ~ 1MHz, Ampl > 0.1Vpp
–35 dBc 1MHz ~ 5MHz, Ampl > 0.1Vpp
–30 dBc 5MHz ~ 25MHz, Ampl > 0.1Vpp

Square wave
Characteristics

Rise/Fall Time

≦25ns at maximum output (into 50Ωload)

Overshoot

< 5%

Asymmetry

1% of period+1 ns

Variable Duty Cycle

1.0% to 99.0% ≦ 100kHz
20.0% to 80.0% ≦ 5 MHz
40.0% to 60.0% ≦10MHz
50% ≦ 25MHz

Ramp Characteristics

Linearity

＜ 0.1% of peak output

Variable Symmetry

0% to 100%(0.1% Resolution)

AM Modulation

Carrier Waveforms

Sine, Square, Triangle

Modulating Waveforms

Sine, Square, Triangle

Modulating Frequency

2 mHz to 20 kHz (Int), DC to 20KHz (Ext)

Depth

0% to 120.0%

Source

Internal / External

FM Modulation

Carrier Waveforms

Sine, Square, Triangle

Modulating Waveforms

Sine, Square, Triangle

Modulating Frequency

2 mHz to 20 kHz (Int), DC to 20KHz (Ext)

Deviation

DC to Max Frequency

Source

Internal / External

SWEEP

Waveforms

Sine, Square, Triangle

Type

Linear or Logarithmic

Start F / Stop F

0.1Hz to Max Frequency

Sweep Time

1 ms to 500 s

Source

Internal / External

FSK

Carrier Waveforms

Sine, Square, Triangle

Modulating Waveforms

50% duty cycle square

Modulation Rate

2mHz to 100kHz(INT), DC to 100kHz(Ext)

Frequency Range

0.1Hz to Max Frequency

Source

Internal / External

Frequency Counter

Range

5Hz to 150MHz

Accuracy

Time Base accuracy±1count

Time base

±20ppm (23℃ ± 5℃) after 30 minutes warm up

Resolution

100nHz for 1Hz, 0.1Hz for 100MHz.

Input Impedance

1kΩ/1pf

Sensitivity

35mVrms ~ 30Vms (5Hz to 150MHz)

System Characteristics

Store/Recall

10 Groups of Setting Memories

Interface

USB(Device)

Display

LCD

General Specifications

Power Source

AC100～240V , 50～60Hz

Power Consumption

25 VA

Operating Environment

Temperature to satisfy the specification : 18 ~ 28°C
Operating temperature : 0 ~ 40°C
Relative Humidity: ≤ 80%, 0 ~ 40°C, ≤ 70%, 35 ~ 40°C
Installation category： CAT Ⅱ

Operating Altitude

2000 meters

Storage Temperature

-10 ~ 70°C, Humidity: ≤70%

Dimensions, Weight

266(W)×107(H)×293(D) mm, Approx. 2.5 kg
