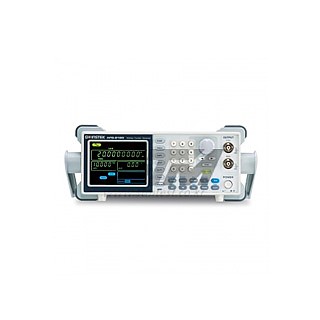

주요 특징

Models

AFG-2000 series

AFG-2100 Series

AFG-2005

AFG-2012

AFG-2025

AFG-2105

AFG-2112

AFG-2125

Waveforms

Sine, Square, Ramp, Noise, Arbitrary Waveform

Arbitrary Waveform

Sample Rate

20 MSa/s

Repetition Rate

10MHz

Waveform Length

4k points

Amplitude Resolution

10 bit

Non-Volatile Memory

4k points

Frequency Characteristics

Range

Sine, Square

0.1Hz~5MHz

0.1Hz~12MHz

0.1Hz~25MHz

0.1Hz~5MHz

0.1Hz~12MHz

0.1Hz~25MHz

Ramp

0.1Hz~1MHz

Resolution

Sine, Square, Ramp

0.1Hz

Accuracy

Stability

±20 ppm

Aging

±1 ppm, per 1 year

Tolerance

≦ 1 mHz

Output Characteristics

Amplitude

Range

1 mVpp to 10 Vpp(into 50Ω), 0.1Hz～20MHz
2 mVpp to 20 Vpp(open-circuit) , 0.1Hz～20MHz
1 mVpp to 5 Vpp(into 50Ω), 20MHz～25MHz
2 mVpp to 10 Vpp(open-circuit), 20MHz～25MHz

Accuracy

± 2% of setting ±1 mVpp (at 1 kHz,>10 mVpp)

Resolution

1 mV or 3 digits

Flatness

± 1% (0.1dB) ≦100kHz
± 3% (0.3 dB) ≦5MHz
± 4% (0.4 dB) ≦12MHz
± 20% (2 dB) ≦20MHz
± 5% (0.4 dB) ≦25MHz
(sine wave relative to 1 kHz)

Units

Vpp, Vrms, dBm

Offset

Range

±5 Vpk ac +dc (into 50Ω)
±10Vpk ac +dc (Open circuit)
±2.5 Vpk ac +dc (into 50Ω) for 20MHz-25MHz
±5Vpk ac +dc (Open circuit) for 20MHz-25MHz

Accuracy

2% of setting + 5 mV+ 0.5% of amplitude

Output

Impedance

50Ω typical (fixed) > 300kΩ (output disabled)

Protection (main output)

Short-circuit protected by overload relay automatically disables output

SYNC Output

Level

TTL-compatible into>1kΩ

Impedance

50Ω nominal

Rise or Fall Time

≦25ns

Sine wave Characteristics

Harmonic Distortion

–55 dBc DC ~ 200kHz, Ampl > 0.1Vpp
–50 dBc 200kHz ~ 1MHz, Ampl > 0.1Vpp
–35 dBc 1MHz ~ 5MHz, Ampl > 0.1Vpp
–30 dBc 5MHz ~ 25MHz, Ampl > 0.1Vpp

Square wave
Characteristics

Rise/Fall Time

≦25ns at maximum output (into 50Ωload)

Overshoot

< 5%

Asymmetry

1% of period+1 ns

Variable Duty Cycle

1.0% to 99.0% ≦ 100kHz
20.0% to 80.0% ≦ 5 MHz
40.0% to 60.0% ≦10MHz
50% ≦ 25MHz

Ramp Characteristics

Linearity

＜ 0.1% of peak output

Variable Symmetry

0% to 100%(0.1% Resolution)

AM Modulation

Carrier Waveforms

Sine, Square, Triangle

Modulating Waveforms

Sine, Square, Triangle

Modulating Frequency

2 mHz to 20 kHz (Int), DC to 20KHz (Ext)

Depth

0% to 120.0%

Source

Internal / External

FM Modulation

Carrier Waveforms

Sine, Square, Triangle

Modulating Waveforms

Sine, Square, Triangle

Modulating Frequency

2 mHz to 20 kHz (Int), DC to 20KHz (Ext)

Deviation

DC to Max Frequency

Source

Internal / External

SWEEP

Waveforms

Sine, Square, Triangle

Type

Linear or Logarithmic

Start F / Stop F

0.1Hz to Max Frequency

Sweep Time

1 ms to 500 s

Source

Internal / External

FSK

Carrier Waveforms

Sine, Square, Triangle

Modulating Waveforms

50% duty cycle square

Modulation Rate

2mHz to 100kHz(INT), DC to 100kHz(Ext)

Frequency Range

0.1Hz to Max Frequency

Source

Internal / External

Frequency Counter

Range

5Hz to 150MHz

Accuracy

Time Base accuracy±1count

Time base

±20ppm (23℃ ± 5℃) after 30 minutes warm up

Resolution

100nHz for 1Hz, 0.1Hz for 100MHz.

Input Impedance

1kΩ/1pf

Sensitivity

35mVrms ~ 30Vms (5Hz to 150MHz)

System Characteristics

Store/Recall

10 Groups of Setting Memories

Interface

USB(Device)

Display

LCD

General Specifications

Power Source

AC100～240V , 50～60Hz

Power Consumption

25 VA

Operating Environment

Temperature to satisfy the specification : 18 ~ 28°C
Operating temperature : 0 ~ 40°C
Relative Humidity: ≤ 80%, 0 ~ 40°C, ≤ 70%, 35 ~ 40°C
Installation category： CAT Ⅱ

Operating Altitude

2000 meters

Storage Temperature

-10 ~ 70°C, Humidity: ≤70%

Dimensions, Weight

266(W)×107(H)×293(D) mm, Approx. 2.5 kg

기본 악세사리

옵션 악세사리

  CD (사용 설명서+소프트웨어) x1
  쿽 스타트 가이드 x 1
  전원 코드 x 1
  AFG-2100 시리즈 : GTL-101(테스트 리드) × 2
  AFG-2000 시리즈 : GTL-101(테스트 리드) x 1

  GTL-246 ; USB 케이블
