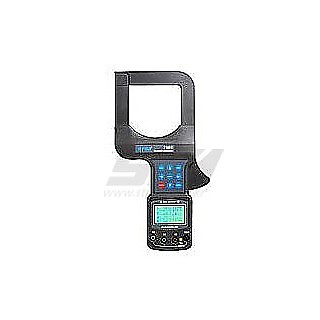

ETCR-7000A 요약정보 및 구매

상품 선택옵션 0 개, 추가옵션 0 개

제조사	ETCR
브랜드	ETCR
모델	ETCR-7000A
판매가격	770,000원
배송비결제	주문시 결제

선택된 옵션

ETCR-7000A (+0원)
수량

위시리스트 추천하기

이전상품 ETCR-7100 다음 상품 ETCR-6800

상품 정보

상품정보
상품문의 0
배송 및 반품정보
관련상품 0

상품 상세설명

	Ⅰ.Introduction

	ETCR7000A series of Large Caliber Leakage Clamp Meter is well designed and manufactured for measuring AC leakage current, current, voltage, adopt the latest CT technology and digital integrated technology. Its large caliber 80mm×80mm can clamp electric cable of 80mm diameter, or 96mm×4mm flat cable and steel earth wires. Full automatically and simultaneously measure one leakage current and three voltages, all the data are displayed in the screen, which is very clear and convenient. The meter is widely used in electric power, communication, meteorology, railway, oil field, architecture, measuring, teaching research unit, industrial mining enterprises, etc.
	ETCR7000A series of Large Caliber Leakage Clamp Meter’s clamp core is made of special alloy, adopt the latest magnetic shielding techniques, can almost shield the influence from external magnetic field, to ensure the high precision, high stability and high reliability of perennial uninterrupted measurement. The meter can store 200 sets of data, with RS232 interface, upload stored data to the computer through the system software, implementing online real-time monitoring, historical inquires, dynamic display. With the function of historical data read, preserve, print, and backlight, data hold, etc. It is a necessary tool for electrical safety testing.

	Ⅱ.Technical Specifications

	Function		Measure AC leakage current, current, there-phase, voltage
	Power		6V DC(LR6×4 alkaline dry batteries, continuously working for 12 hours)
	Test Mode		Clamp CT, integral mode
	Clamp Size		80mm×80mm(can clamp electric cable of 80mm diameter, or 96mm×4mm flat cable and steel earth wires)
	Current Range		0.0mA～2000A
	Current Resolution		0.1mA
	Voltage Range		0.00V～600V
	Voltage Resolution		0.01V
	Measurement Accuracy		0.00mA～300A: ±1.5%±3dgt
	(23℃±3℃, below 70%RH, measured wire at the center of the clamp)		300A～1200A: ±2%±3dgt
			1200A～2000A: ±3%±3dgt
			0.00V～600V: ±1.5%±3dgt
	Measured Wire Position		Measured wire at approximately the geometric center of the clamp
	Data Storage		200 sets, “FULL” symbol indicate the memory is full
	RS232 Interface		With RS232 interface, download data to computer for analysis and management
	Communication Wire		RS232 communication wire, 1.8m
	Frequency		50Hz ,60Hz automatic identification
	Gear Shift		Automatic shift
	Sample Rate		About 2 times/second
	Line Voltage		Below AC 600V line mea
