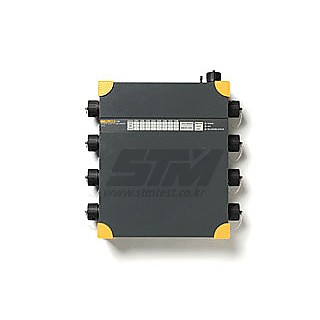

EN50160 and ITIC, CEBEMA, ANSI와 같은 DISDIP tables에 의한 전력품질 통계

Dips, swells and interruptions are detected and stored in the event list. Also any trigger which fires generates an event added to this list.

The Event list shows the exact time when the event occurred as well as the duration and magnitude. Sorting by several attributes of these events is possible to select one for further root cause analysis.

RMS values, transients and fast transients can be stored if a trigger fires.

Fluke 1760은 아래요소의 최대, 최소값에 상응하는 rms 값을 기록합니다.

• Voltage

• Current

• Power P, Q, S

• Power Factor

• kWh

• Flicker

• Unbalance

• Frequency

• Harmonics/Interharmonics

continuously with the following time aggregations:

Day

10 min

Free Interval, e.g.: 15 min, 2h

rms:

Aggregation time is adjustable between 10 ms (1/2 cycle), 20ms (1 cycle), 200ms (10/12 cycles) or 3 sec (150/180 cycles).

Calculating rms values, Harmonics and Interharmonics is performed synchronous to the power frequency.

Basic aggregation for harmonics and interharmonics is 200ms

Oscilloscope:

Sample rate is 10.24 kHz for all 8 channels

Fast Transients:

Sample rate is selectable from 100 kHz to 10 MHz for channel 1-4 FFT of Fast Transients

Phases and N-conductor, Voltage and current

Variable refresh rate. This feature allows verification of instrument set up and delivers a quick overview of oscilloscope, transients and events.

기준조건에 따르며 2년동안 보증함

developed, manufactured as per ISO 9001: 2000

Operating temp. range:

0 °C to +50 °C; 32 °F to +122 °F

Working temp. range:

-20 °C to +50 °C; -4 °F to +122 °F

Storage temp. range:

20 °C to +60 °C; -4 °F to 140 °F

Reference temperature:

23 °C ± 2 K; 74 °F ± 2 K

Climatic class:

B2 (IEC 654-1), -20 °C to +50 °C; -4 °F to +122 °F

Max. operating altitude:

2000 m: max. 600 V CAT IV*, power supply: 300 V CAT III 5000 m: max 600 V CAT III*, power supply: 300 V CAT II
* depending on sensor

Environment temp.:

23 °C ± 2 K ; 74°F ± 2 K

Power supply:

230 V ± 10 %

Power frequency:

50 Hz / 60 Hz

Signal:

declared input voltage Udin

Averaging:

10 minute intervals

절연된, 견고한 플라스틱 하우징

Emission:

Class-A as per IEC/EN 61326-1

Immunity:

IEC/EN 61326-1

범위:

AC: 83 V to 264 V, 45 to 65 Hz

DC: 100 V to 375 V

Safety:

IEC/EN 61010-1 2nd edition

300 V CAT III

소비전력:

max. 54VA

배터리타입:

NIMH, 7.2 V, 2.7 Ah

In case of a power supply failure an internal battery maintains the supply for up to 40 minutes. Afterwards, or in case of discharged accumulators the Fluke 1760 is turned off and continues the measurements with the latest settings as soon as the supply voltage returns. The battery can be replaced by the user.

Fluke 1760 features LED indicators for the status of the 8 channels, phase sequence, power supply (mains or accumulator), memory usage, time synchronization, and data transfer.

Power LED:

• Permanent light: normal power supply from mains.

• OFF: supply via internal accumulator in case of a power failure.

Channel LEDs

3-color LEDs per channel for:

• overload condition

• under load condition

signal level in nominal range

2 GB Flash memory depending on model

Linear

Ethernet (100MB/s), compatible to Windows® 98/ME/NT/2000/XP RS 232, external modem via RS 232

9600 Baud to 115 kBaud

325 mm x 300 m x 65 mm; 2.8 x 11.8 x 2.6 in. (H x W x D)

appr. 4.9 kg; 10.8 lbs. (without accessories)

2년

Class-A를 위해선 1년, 그 밖에는 2년 권장,

50 Hz ± 15 % (42.5 Hz to 57.5 Hz)

60 Hz ± 15 % (51 Hz to 69 Hz)

16 ppm

10.24 kHz, The sampling rate is synchronized to mains frequency.

< 20 ppm

< 1s / day

Aggregation of the interval values as per IEC 61000-4-30 Class-A

Min-, Max-values:

Half cycle, e.g.: 10 ms rms values at 50Hz

Transients:

Sample rate 100 kHz to 10 MHz per channel

as per IEC 61000-4-7:2002: 200 ms

as per EN 61000-4-15:2003: 10 min (Pst), 2 h (Plt)

8 galvanically isolated inputs for voltage and current measurements.

up to 600 V CAT IV depending on sensor

300 V CAT III

100 mV

280 mV

1000 V, continuously

max. 15 kV / µs

1 MΩ

5 pF

Each channel is equipped with a passive low-pass filter, an anti-aliasing filter and a 16-bit A/D converter. All channels are sampled synchronously with a common quartz-controlled clock pulse.

The filters protect against voltage transients and limit the signal rise rate, reduce high frequency components and especially the noise voltage above half the sampling rate of the A/D converter by 80 dB, thus achieving very small measuring errors in an exceptionally large amplitude range. This is also valid under extreme operating conditions like transient voltages at the output of converters.

Uncertainty including the voltage sensors is in compliance with IEC 61000-4-30 Class-A. All voltage sensors are suitable for DC up to 5 kHz

With Sensor 1000 V

0,1% at Udin = 480 V and 600 V P-N

Sensor 600 V

0,1% at Udin = 230 V P-N

Class I as per EN 61000-4-7:2002

23 °C ± 2 K < 60 % rH; 74 °F ± 2 K < 60 % rH

Warmed up instrument > 3h

Power supply: 100 V to 250 V ac

100 ppm / K

< 0.05 % / year

> 100 dB at 50 Hz

Change of amplification through temperature: < 0.005 %/K

Change of amplification due to ageing: < 0.04 %/year

Noise voltage, input short-circuited: < 40 µV

± (0.2% rdg + 0.1% sensor)
