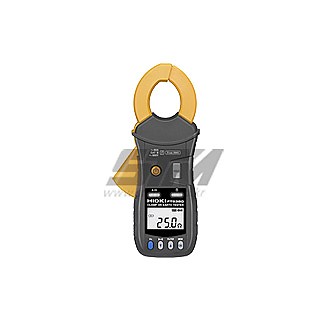

FT-6380 요약정보 및 구매

상품 선택옵션 0 개, 추가옵션 0 개

제조사 HIOKI
브랜드 HIOKI
모델 FT-6380
판매가격 1,260,000원
배송비결제 주문시 결제

선택된 옵션

  • FT-6380 (+0원)
  • 카탈로그
  • 메뉴얼
  • 프로그램
  • 드라이버
  • 데이터시트

상품 정보

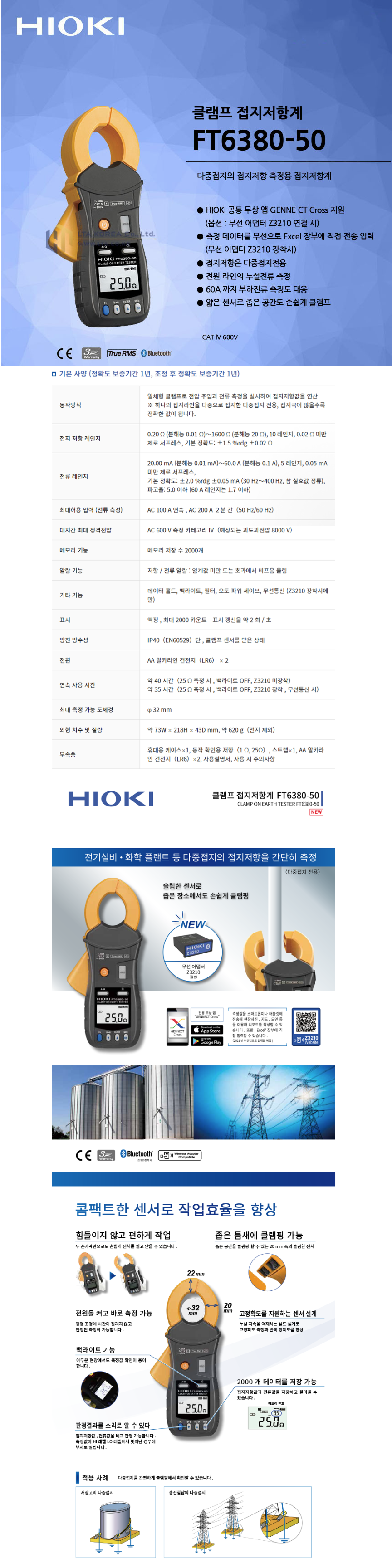

상품 상세설명

· 소형의 클램프 센서로 좁은 장소에서도 편리한 사용가능
· 사용자 편의를 고려한 큰 센서그립
· 저소비 전력을 실현하여 장시간 사용가능
· 본체에 2,000개의 데이터를 저장가능





General specifications

DisplayLCD, max. 2,000 count, refresh rate: approx. 2 updates/sec
Diameter of maximum measurable conductor32 mm
Power supplyAA-size alkaline battery (LR6) × 2
Continuous operating timeApprox. 35 hours
*With backlight off and Bluetooth® off (FT6381).
Auto power-save functionApprox. 5 min. (from last operation)
Operating temperature and humidity range-10°C to 50°C, 80% RH or less (non-condensing)
Storage temperature and humidity range-20°C to 60°C, 80% RH or less (non-condensing, excludes batteries)
Dust and moisture protectionIP40 (EN 60529)
*With clamp-on sensor in the closed position.
Withstand voltage7,400 Vrms AC for 1 min., applied between case and clamp-on sensor core
Maximum allowable current100 A AC continuous, 200 A AC for 2 min. (50/60 Hz)
Standard complianceSafety: EN 61010
EMC: EN 61326
Dimensions and weight73 (W) x 218 (H) x 44 (D) mm, 650 g (excluding batteries)
AccessoriesCarrying case × 1, resistor for verifying proper operation x 1, strap x 1, AA-size alkaline battery (LR6) x 2, instruction manual x 1


Resistance measurement
Guaranteed accuracy temperature and humidity range: 23°C ±5°C, 80% RH or less (non-condensating)

RangeAccuracy rangeResolutionAccuracy
0.20 Ω0.02 Ω to 0.20 Ω0.01 Ω±1.5% rdg. ±0.02 Ω
2.00 Ω0.18 Ω to 2.00 Ω0.01 Ω±1.5% rdg. ±0.02 Ω
20.00 Ω1.80 Ω to 20.00 Ω0.01 Ω±1.5% rdg. ±0.05 Ω
50.0 Ω18.0 Ω to 50.0 Ω0.1 Ω±1.5% rdg. ±0.1 Ω
100.0 Ω50.0 Ω to 100.0 Ω0.1 Ω±1.5% rdg. ±0.5 Ω
200.0 Ω100.0 Ω to 200.0 Ω0.2 Ω±3.0% rdg. ±1.0 Ω
400 Ω180 Ω to 400 Ω1 Ω±5% rdg. ±5Ω
600 Ω400 Ω to 600 Ω2 Ω±10% rdg. ±10 Ω
1,200 Ω600 Ω to 1,200 Ω10 Ω±20% rdg.
1,600 Ω1,200 Ω to 1,600 Ω20 Ω±35% rdg.


Current measurement
Guaranteed accuracy temperature and humidity range: 23°C ±5°C, 80% RH or less (non-condensating)

RangeAccuracy rangeResolutionGuaranteed accuracy frequency rangeAccuracy
Filter offFilter on
20.00 mA1.00 mA to 20.00 mA0.01 mA45 ≤ f ≤ 66 Hz±2.0% rdg. ±0.05 mA±2.0% rdg. ±0.05 mA
30 ≤ f < 45 Hz,66 < f ≤ 400 Hz±2.5% rdg. ±0.05 mA--
200.0 mA18.0 mA to 200.0 mA0.1 mA45 ≤ f ≤ 66 Hz±2.0% rdg. ±0.5 mA±2.0% rdg. ±0.5 mA
30 ≤ f < 45 Hz,66 < f ≤ 400 Hz±2.5% rdg. ±0.5 mA--
2.000 A0.180 A to 2.000 A0.001 A45 ≤ f ≤ 66 Hz±2.0% rdg. ±0.005 A±2.0% rdg. ±0.005 A
30 ≤ f < 45 Hz,66 < f ≤ 400 Hz±2.5% rdg. ±0.005 A--
20.00 A1.80 A to 20.00 A0.01 A45 ≤ f ≤ 66 Hz±2.0% rdg. ±0.05 A±2.0% rdg. ±0.05 A
30 ≤ f < 45 Hz,66 < f ≤ 400 Hz±2.5% rdg. ±0.05 A--
60.0 A18.0 A to 60.0 A0.1 A45 ≤ f ≤ 66 Hz±2.0% rdg. ±0.5 A±2.0% rdg. ±0.5 A
30 ≤ f < 45 Hz,66 < f ≤ 400 Hz±2.5% rdg. ±0.5 A--
