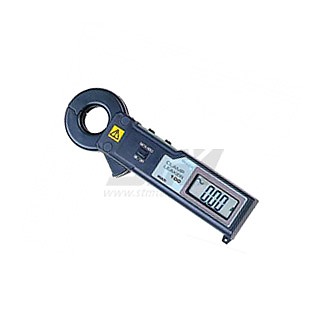

AC Leakage Current, 200mA/20A, 18mmφ CT Model 100
FEATURES 18mmφCT window and ultra compact size. Least affection from the external magnetic field. The special alloy is used for core material that resists the rust over long period of use and ensures stable,high accurate measurements with very slight influence from aging.

AC Leakage Current, 200mA/20A, 18mmφ CT

Model 100

FEATURES

18mmφCT window and ultra compact size.
Least affection from the external magnetic field.
The special alloy is used for core material that resists the rust over long period of use and ensures stable,high accurate measurements with very slight influence from aging.

SPECIFICATIONS

Measuring method

Dual slope integration mode

Display

3.5 digit LCD, max. reading of 1999

Range

AC 0～200mA/20A

Accuracy

23℃±5℃ 80%RH or less (50/60Hz)

Range	Resolution	Accuracy
AC 200mA	0.1mA	±1.0% rdg ± 5 dgt
AC 20A	10mA	±1.0% rdg ± 5 dgt

Jaw opening capability

18mmφ

Over range indication

Blanking of all digits except MSD 1

Maximum indication

1999

Low battery indication

"B" mark on LCD

Data hold indication

"DH" mark on LCD

Sampling

2 times/sec

Withstanding voltage

AC 2200V 1 minute max. (Between the core of CT and outer case)

Operating temperature

0℃ to 40℃, 80%RH max. ( Without condensation )

Storage temperature

-10℃ to 60℃, 70%RH max. ( Without condensation )

Power supply

1.55V (SR-44, LR-44)×2

Power Consumption

3mW

Battery life

SR-44 (200 hours), LR-44 (100 hours)

Size

45(W)×140(H)×20(D)mm

Weight

Approx. 80g

Accessories

Soft case	:	1
Instruction manual	:	1
Batteries LR-44(1.55V)	:	2
