M-110 요약정보 및 구매

제조사 MULTI
브랜드 MULTI
모델 M-110
판매가격 전화문의
배송비결제 주문시 결제
  • 카탈로그
  • 메뉴얼
  • 프로그램
  • 드라이버
  • 데이터시트

상품 정보

상품 상세설명

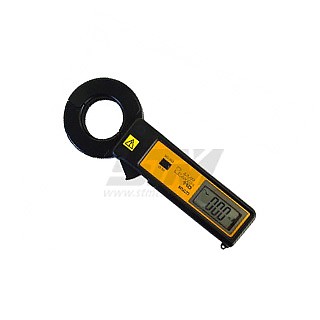

AC Leakage Current, 2mA /20mA /60A, 30mmφ CT
Model 110








FEATURES

  • 30mmφCT window and ultra compact size.
  • Least affection from the external magnetic field.
  • The special alloy is used for core material that resists the rust over long period of use and ensures stable, high accurate measurements with very slight influence from aging.
SPECIFICATIONS
Measuring method:Dual slope integration mode
Display:3.5 digit LCD, max. reading of 1999
Range:AC 0～2mA/20mA/60A
Accuracy:23℃±5℃ 80%RH or less (50/60Hz)
RangeResolutionAccuracy
AC 2mA1μA±1.0% rdg ± 5 dgt
AC 20mA10μA
10mA100mA±1.0% rdg ± 5 dgt (0～50A)
±5.0% rdg ± 5 dgt (50～60A)
Jaw opening capability:30mmφ
Over range indication:Blanking of all digits except MSD 1
Maximum indication:1999
Low battery indication:"B" mark on LCD
Data hold indication:"DH" mark on LCD
Sampling:2 times/sec
Withstanding voltage:AC 2200V 1 minute max. (Between the core of CT and outer case)
Operating temperature:0℃ to 40℃, 80%RH max. ( Without condensation )
Storage temperature:-10℃ to 60℃, 70%RH max. ( Without condensation )
Power supply:1.55V (SR-44, LR-44)×2
Power Consumption:3mW
Battery life:SR-44 (200 hours), LR-44 (100 hours)
Size:58.5(W)×158(H)×23(D)mm
Weight:Approx. 120g
Accessories:
Soft case:1
Instruction manual:1
Batteries LR-44(1.55V):2
