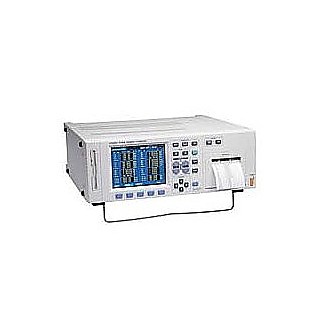

Measurement lines

Single-phase/two-wires to three-phase/four-wires (Through the use of various input units)

Measurement items

(When using 9600 / 9601 / 9602, optional)

Voltage, current, voltage/current peak, effective/reactive/apparent power, power factor, phase, frequency, current/power integration, load rate, efficiency

(When using 9603, optional)

Voltage, torque, RPM, frequency, motor output

(When using 9605, optional)

Harmonic, waveform, voltage fluctuation / flicker measurement functio

Measurement ranges

Voltage: 6.0000 V to 1.0000 kV (depends on use of the input unit), Current: 200.00 mA to 500.00 A (depends on use of the input unit), Power: Depends on combination of voltage and current ranges

Integration range

0 to ±999999 TAh/ TWh, (integration time up to 10000 hours)

Basic accuracy

±0.1 % rdg. ±0.1 % f.s. (voltage, current, power, at 45 to 66Hz) Note: When used together with the 9270 to 9272, and 9277 to 9279, resulting accuracy is the sum of that indicated above and the accuracy of these clamp-on sensors

used with 9600 to 9602 Input unit

Frequency characteristics

used with 9600: DC, 0.5 Hz to 1 MHz

used with 9601: 5 Hz to 100 kHz

used with 9602: DC, 0.5 Hz to 200 kHz (depends on the clamp-on sensor accuracy)

Signal output

Analog level: Voltage, current, active power, 5 V DC f.s., Waveform monitor: Voltage, current, 1 V rms f.s., D/A output: Outputs 8 arbitrarily selected items, ±5 V DC f.s.

Other functions

6.4 inch TFT color LCD, RMS/MEAN rectification, FDD, GP-IB/RS-232C interface, scaling, averaging

Power supply

100/120/200/230 V AC (switched automatically), 50/60 Hz

Dimensions, mass

430 mm(16.93 in)W × 150 mm(5.91 in)H × 370 mm(14.57 in)D, 15 kg (529.1 oz) ...with all options

Accessories

Power cord (1), Connector (1)
