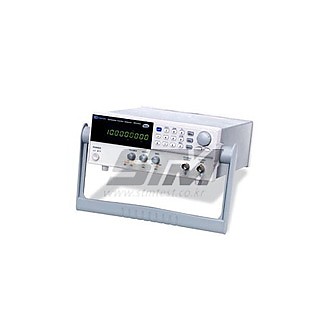

Main | |
Frequency Range (For Sine, Square) | 0.1Hz ~ 4MHz |
Frequency Range (For Triangle) | 0.1Hz ~ 1MHz |
Resolution | 0.1Hz |
Stability | ± 20ppm |
Accuracy | ± 20ppm |
Aging | ± 5ppm / year |
Output Function | Sine, Square, Triangle |
Amplitude Range | 10Vpp (into 50Ω load) |
Flatness (Sine wave relative to 1kHz) | <±0.3dB, 0.1Hz~1MHz; <±0.5dB, 1MHz~4 MHz; <± 2dB, 4MHz~10MHz |
Impedance | 50Ω ± 10% |
Attenuator | -20dB ± 1dB x 2 |
DC Offset | < -5V ~ > +5V (into 50Ω load) |
Duty Control Range | 20% to 80% below 1MHz (Square wave only) |
Resolution | 1% |
Display | 9 digits LED display |
Sine Wave | |
Harmonics Distortion | -55dBc, 0.1Hz~200kHz; -40dBc, 0.2MHz~4MHz; -30dBc, 4MHz~10MHz (Specification applied from MAX. to 1/10 level) |
Triangle Wave | |
Linear | ≥98%, 0.1Hz~100kHz; ≥95%, 0.1Hz~1MHz |
Square Wave | |
Symmetry | ±1% period +4ns to 0.1Hz~100Hz; Rise or Fall Time ≤25ns at maximum output. (into 50Ω load) |
CMOS Output | |
Level | 4Vpp±1Vpp~ 14.5Vpp±0.5Vpp adjustable; Rise or Fall Time; ≤120ns |
TTL Output | |
Level | ≥3Vpp; Fan Out; 20 TTL load; Rise or Fall Time; ≤25ns |
Store / Recall Function | |
Size | 10 groups of Setting memories |
Misc | |
Power Source | AC 115V, 230V±15%, 50/60Hz |
Accessories | Instruction Manual x 1, Power cord x 1, GTL-101 x 1 |
Dimensions & Weight | 107(W)x266(H)x293(D) m/m; Approx. 3.1kg |
