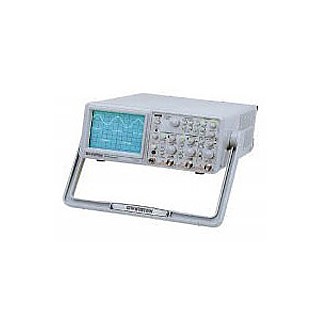

50MHz Bandwidth, Dual Channel TV Synchronization CH1 Output Z-axis Modulation Input ALT Triggering Function Hold Off Function Trigger Level Lock Function |
| |
CRT | | Type | 6-inch rectangular type with internal graticule
0%, 10%, 90% and 100% markers.
8 x 10 div (1div=1cm) | Accelerating Potential
| 12kV | | Illumination | Continuously adjustable | Z-axis Input
| Input Impedance: Approx. 5kΩ
Sensitivity:Above 3Vp-p
Bandwidth:DC ~ 5MHz | VERTICAL SYSTEM
| | Sensitivity | 5mV/div ~ 5V/div±3%,1mV ~ 2mV/div±5% | | Bandwidth | DC ~ 50MHz
DC ~ 15MHz at 1 ~ 2mV/div | Rise Time
| 7ns (23.3ns for 1 ~ 2mV/div) | Input Impedance
| Approx. 1MΩ | Input Coupling
| AC, DC, GND | Vertical Mode
| CH1, CH2, DUAL, ADD, CH2 INV
(Dual automatic switching ALT and CHOP) | HORIZONTAL SYSTEM
| | A(main) Sweep Time | 0.1μs ~ 0.5s/div±3%
100ns ~ 50ms/div±5% (x 10 MAG)
10ns ~ 50ns±8% (x 10 MAG) | TRIGGER
| | Trigger Mode | AUTO, NORM, SINGLE | | Trigger Source | CH1, CH2, ALT, LINE, EXT | | Trigger Coupling | AC, DC, HF REJ, TV | | Trigger Slope | "+" or "-" | X-Y OPERATION | | Sensitivity | 5mV ~ 5V/div±4% | | X-axis Bandwidth | DC ~ 2MHz | | Phase Error | 3° or less from DC ~ 50kHz | OUTPUT SIGNAL
| | Trigger Signal Output | Voltage: approx. 50mV/div into 50Ω | Calibrator Output
| 1kHz Square wave, 2Vp-p±2% | | POWER SOURCE | | | AC 100V/120V/220V/230V±10%, 50Hz/60Hz | ACCESSORIES | | Instruction manual x 1,
Power cord x 1,
GLF-190C Probes (10:1/1:1) x 2 | | DIMENSIONS & WEIGHT | | | 310(W) x 150(H) x 455(D) mm;
Approx. 8.2kg |
| | Inquiry | Model | Name | Descripation | | GTC-002 | Instrument Cart | 30kg Loading, 120V Input, 330(W) x 430(D) mm For GDS,GOS,GRS Series | | GTC-001 | Instrument Cart | 30kg Loading, 120V Input , 450(W) x 430(D)mm For GDS,GOS,GRS Series | | GLF-190C | Probe | 10:1 DC~60MHz, 1:1 DC~6MHz For: GOS-652G/653G, GOS-6000 Series, GRS-6000A Series |
|
|
|
