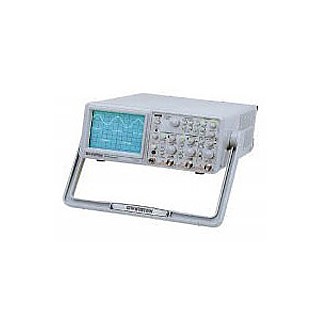

20MHz Bandwidth, Dual Channel High Sensitivity 1mV/div TV Synchronization Z-axis Input ALT Triggering Function CH1 Output |
| |
CRT | | Type | 6-inch rectangular type with internal graticule
8 x 10 div (1div=1cm) | | Z-Axis Input | Input Impedance: Approx. 47kΩ
Sensitivity: Above 5Vp-p
Bandwidth: DC ~ 2MHz | VERTICAL SYSTEM | | Sensitivity | 5mV/div~5V/div±3%,x5MAG±5% | | Bandwidth | DC (AC 10Hz) ~ 20MHz(-3dB)
DC (AC 10Hz) ~ 7MHz(-3dB) at x5MAG | | Rise Time | 17.5ns (50ns at x5MAG) | Input Impedance
| Approx. 1MΩ | Input Coupling
| AC, DC, GND | | Vertical Mode | CH1, CH2, DUAL (ALT/CHOP), ADD, CH2 INV | HORIZONTAL SYSTEM | Sweep Time
| 0.2μs ~ 0.5s/div±3%
100ns ~ 50ms/div±5% (x 10 MAG)
20ns ~ 50ns/div : uncalibrated | TRIGGER
| | Trigger Mode | AUTO, NORM, TV-V, TV-H | Trigger Source
| CH1, CH2, ALT, LINE, EXT | | Trigger Coupling | AC | | Trigger Slope | "+" or "-" | X - Y OPERATION | Sensitivity
| 5mV ~ 5V/div±4% | X-axis Bandwidth
| DC ~ 500kHz | | Phase Error | 3° or less from DC ~ 50kHz | OUTPUT SIGNAL | Trigger Signal Output
| Voltage: approx. 20mV/div into 50Ω | Calibrator Output
| 1kHz Square wave, 2Vp-p±2% | POWER SOURCE
| | | AC 115V/230V±15%, 50Hz/60Hz | ACCESSORIES
| | Instruction manual x 1
Power Cord x 1
GCP-210LC Probes (10:1/1:1) x 2 | | DIMENSIONS & WEIGHT | | | 310(W) x 150(H) x 455(D) mm;
Approx. 8kg |
