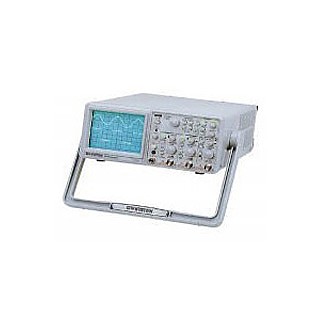

Built-In 1 MHz Function Generator 20MHz Bandwidth, Dual Channel High Sensitivity 1mV/div ALT Triggering Function TV Synchronization CH1 Output Z Axis Input Economic Choice for High Quality |
| |
CRT | | Type | 6-inch rectangular type with internal graticule
8 x 10 div (1div=1cm) | | Accelerating Potential | 2kV | Z-Axis Input
| Sensitivity: Above 5Vp-p
Max. input voltage: 30V (DC + AC peak)
Bandwidth: DC ~ 2MHz | Polarity
| Positive-going input decrease | | Focus Control | Auto focus | FUNCTION GENERATOR | | Frequency Range | 0.1Hz ~ 1MHz (7 range) | | Waveform | Sine Wave, Square Wave, Triangle Wave | | Frequency Variable Range | 10:1 or more | | Output Impedance | 50Ω±10%
| | Voltage | Over 14Vp-p(open circuit) continuous conversion
DC offset possible over±6V when open | | Sinewave Distortion | 2% Max. (10Hz ~ 100kHz) | | Squarewave Unsymmetry | ±3% or less (in 1 kHz maximum) | | Squarewave Rise/Fall Time | 50Ω output: 120ns or less | VERTICAL SYSTEM
| Sensitivity
| 5mV/div~5V/div±3%, 1mV/div~1V/div±5% (using x5MAG) | Bandwidth
| DC to 20MHz (x 5MAG.:DC to 7MHz) | | Rise Time | Approx. 17.5ns (x 5MAG. :Approx. 50ns) | | Max. Input | 300V (DC+ACpeak) at 1kHz | | Input Coupling | AC, DC, GND | | Input Impedance | Approx. 1MΩ// 25pF | | Vertical Mode | CH1,CH2,DUAL(ALT,CHOP),ADD,CH2 INV | HORIZONTAL SYSTEM | | Sweep Time | 0.2μs/div ~ 0.5s/div±3% (±5% at x10 MAG) | | Max. Sweep Rate | 100ns/div (20ns and 50ns/div are uncalibrated) | TRIGGER
| | Trigger Mode | AUTO, NORM, TV-V, TV-H | | Trigger Source | CH1, CH2, ALT, LINE, EXT | | Trigger Slope | "+" or "-" | X-Y OPERATION | | Sensitivity | 5mV ~ 5V/div±4% | | X-axis Bandwidth | DC ~ 500kHz | | Phase Error | 3° or less from DC ~ 50kHz | OUTPUT SIGNAL
| | Trigger Signal Output | Voltage: approx. 20mV/div into 50Ω
Bandwidth : 50Hz to 5MHz (-3dB)
Impedance : Approx.50Ω | Calibrator Output
| 1kHz Square wave, 2Vp-p±2% | POWER SOURCE
| |
| AC 115/230V±15%, 50/60Hz | ACCESSORIES
| | Instruction manual x 1
Power cord x 1
Probe GCP-210LC (10:1/1:1) x 2
Test Lead GTL-101 x 1 | | DIMENSIONS & WEIGHT | | | 310(W) x 150(H) x 455(D)mm
Approx. 8.5kg |
| | Inquiry | Model | Name | Descripation | | GTC-002 | Instrument Cart | 30kg Loading, 120V Input, 330(W) x 430(D) mm For GDS,GOS,GRS Series | | GTC-001 | Instrument Cart | 30kg Loading, 120V Input , 450(W) x 430(D)mm For GDS,GOS,GRS Series | | GTL-101 | BNC-Alligator Test Lead | For: GOS-310, GOS-620FG, GVT-427B/417B, GFC-8010H/8131H/8270H, GFG Series SFG-1003/1013 | | GCP-210LC | Probe | 10:1 DC ~ 60MHz 1:1 DC ~ 6MHz For: GOS-620/620FG/622G/635G |
|
| |
|
