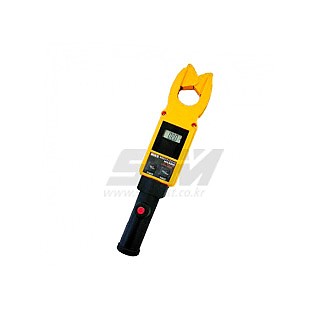

HCL-5000D 요약정보 및 구매

상품 선택옵션 0 개, 추가옵션 0 개

제조사 MULTI
브랜드 MULTI
모델 HCL-5000D
판매가격 840,000원
배송비결제 주문시 결제

선택된 옵션

  • HCL-5000D (+0원)
  • 카탈로그
  • 메뉴얼
  • 프로그램
  • 드라이버
  • 데이터시트

상품 정보

상품 상세설명

AC Current measurements for high voltage circuit
Model HCL-5000D







FEATURES

  • Wide AC current measurements for 0.1A～600A.
  • Easy operation, Push to Open and Pull to Disconnect Mechanism.
  • Safe AC current measurements for high voltage circuit (AC80 to 7000V).
  • Auto power off function and Splash proof structure.
SPECIFICATIONS
Measuring function:AC load current
Measuring method:Dual slope integration mode
AC conversion:Average sensing rms reading
Display:3.5 digit LCD max. reading of 1999 with annunciators
Measuring range:AC 0～20A/600A (50Hz/60Hz), 2 ranges manual
Jaw opening capability:φ35mm
Accuracy:(23℃±5℃ 80%RH or less)
RangeResolutionAccuracy(50/60Hz)
AC 20A0.01A±2%rdg±8dgt
AC 600A1A0～400A : ±2%rdg±8dgt
400A～600A : ±3%rdg±8dgt
Data hold function:"DH" mark on LCD
Insulation resistance:100MΩ or more by DC 1000V insulation tester
(Between operation handle and core of CT)
Withstanding voltage:AC 15kV, 1 minute
(Between operation handle and core of CT)
Limitation of circuit voltage:AC 80Vrms to 7000Vrms
Auto power off:Approx. 5 minutes later after the power on
Sampling time:2 times/sec
Low battery indication:"B" mark on LCD
Operating temperature:0～40℃, less than 80%RH without condensation
Power supply:AAA size battery×2
Size and weight:70(W)×356(H)×68(D)mm, Approx. 400gs.
Accessories:
Carrying case:1
Instruction manual:1
Batteries:2
