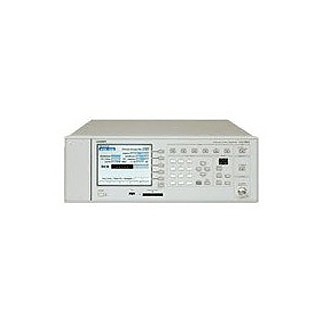

8VSB/QAM SIGNAL GENERATOR / LG 3803 (S1 version) 요약정보 및 구매

제조사	LEADER
브랜드	LEADER
판매가격	전화문의
배송비결제	주문시 결제

상품 정보

상품정보
상품문의 0
배송 및 반품정보
관련상품 0

상품 상세설명

RF Products

Shown with Option 71

		Signal Generator



		LG 3803 (S1 version) 8VSB/QAM SIGNAL GENERATOR


	Upon request



		Ideal For The Production, Test and Alignment Of ATSC Compliant Tuners And Receivers/STBs.

Designed to address the challenges of DTV tuner testing, the LG 3803 (S1 version) provides all of the signal control necessary for testing the performance of ATSC compliant tuners and receivers.
The RF output can be set to emulate 8VSB, 64 and 256QAM modulation formats and the modulation frequency can be set from 50 MHz to 900 MHz covering the entire VHF and UHF spectrum. Output level ranges from -100 to +13dBm (50 Ohm) and it is settable with 0.1dB resolution; ideal for doing input sensitivity tests.
A pseudo-random (PN) generator and a BER counter are built into the instrument and facilitate easy BER measurements in a single unit.
The instrument can be modulated internally (3 built in test patterns; color bars and monoscope) or can be externally modulated (DVB-ASI or SPI input).
The QVGA display provides easy instrument control. The instrument can be Ethernet controlled. Remote control allows preset recall and increment; up to 100 presets can be set up and recalled aiding in the automatic testing process.

Ideal For The Production, Test and Alignment Of ATSC Compliant Tuners And Receivers/STBs.

Includes 8VSB and 64QAM/256QAM Modulation Standards; Covers Both VHF And UHF Bands.

Coding Modulator, C/N Generator and Upconverter Are Integrated In A Single Instrument.

Built-in Pseudo-Random (PN) Signal Source And BER Counter Facilitate BER Measurements Using One Instrument.

Real Time Coding And Modulation Provides Realistic Test Signals.

Real Picture Playback Function Is Available As An Option

Out-Of-Band Option Allows For CATV Return Path BER Evaluation

Intuitive, Clear Display, 100 Presets And Ergonomic Design Make The LG 3803 The Perfect Choice For Manufacturing And Service Applications.

Out-Of-Band (OOB) Testing and BER Measurements

Can Be Performed By Connecting The Optional LG 3803-01 Out-Of-Band Generator (sold separately).

Various factory options (LG 3803 S1 version only)
The following factory options are available:

	OP 71: USB STORAGE Option (factory option)
	The TS can be played back from the HDD drive connected via the USB, or internal HDD drive.
	OP72: Fading Option (factory option)
	The fading noise can be added to a mobile and portable receivers to check a ghost and multipath.

LG 3803 (S1 version)
