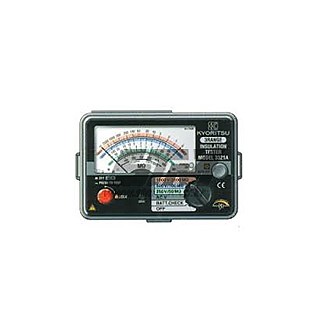

3321A/3322A/3323A > 절연저항계 | 삼성종합계측기

3321A/3322A/3323A 요약정보 및 구매

위시리스트 추천하기

•	AC Voltmeter with linear, easy-to-read scales.
•	Auto discharge function; any charge stored in the circuit under test will be automatically discharged after testing.
•	Designed to meet IEC/EN 61010-1 CAT III 600V, CAT II 1000V
•	Color-coded scales for easy reading.
•	Back light function to facilitate working at dimly illuminated locations.
•	Test lead set with remote control switch.
•	Shoulder strap for hands free.

Insulation Resistance
DC Test Voltage	250V/500V/1000V
Max. Effective Scale Value	50MΩ/100MΩ/2000MΩ
Mid-Scale Value	1MΩ/2MΩ/50MΩ
First Effective Measuring Range Accuracy	0.05 - 20MΩ (250V) 0.1 - 50MΩ (500V) 2 - 1000MΩ (1000V)
First Effective Measuring Range Accuracy	\|±5% of Indicated Value
Second Effective Measuring Range Accuracy	20 - 50MΩ (250V) 50 - 100MΩ (500V) 1000 - 2000MΩ (1000V)
Second Effective Measuring Range Accuracy	\|±10% of Indicated Value
AC Voltage	600V
Accuracy	\|±3% of Full Scale Value (AC V range) \|±5% of Full Scale Value (Except for AC V range)
Safety Standard	IEC/EN 61010-1 CAT III 600V, CAT II 1000V
Withstand Voltage	5550V AC for 1 minute
Power Source	R6 (AA) (1.5V) × 6
Dimensions	105(L) × 158(W) × 70(D)mm
Weight	520g approx.
Accessories	7150A (Remote control switch set) 7081B (Guard Connection Lead): 3321A only Shoulder Strap R6 (AA) × 6 Instruction Manual
Optional	7115 (Extension Probe) 8016 (Hook type prod) 9089 (Carrying Case)
