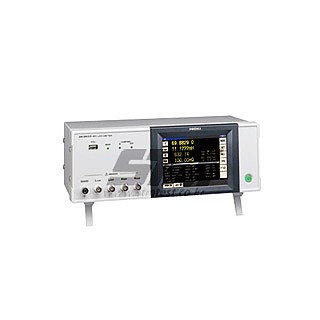

1번째 이미지 새창

IM3533/IM3533-01 요약정보 및 구매

제조사	HIOKI
원산지	JAPAN
브랜드	HIOKI
모델	IM3533/IM3533-01
판매가격	전화문의
배송비결제	주문시 결제

위시리스트 추천하기

이전상품 IM3523 다음 상품 3522-50

상품 정보

상품정보
상품문의 0
배송 및 반품정보
관련상품 0

상품 상세설명


	IM3533	IM3533-01
Measurement modes	LCR, Transformer testing (N, M, ΔL), Continuous testing (LCR mode)	LCR, Transformer testing (N, M, ΔL), Analyzer (sweep testing), Continuous Testing (LCR/ Analyzer mode)
Measurement parameters	Z, Y, θ, Rs (ESR), Rp, DCR (DC resistance), X, G, B, Cs, Cp, Ls, Lp, D (tanδ), Q, N, M, ΔL, T
Measurement range	100mΩ to 100MΩ, 10 ranges (All parameters defined in terms of Z )
Displayable range	Z, Y, Rs, Rp, Rdc, X, G, B, Ls, Lp, Cs, Cp : ± (0.000000 [unit] to 9.999999G [unit]) Real value display for Z and Y only
	θ: ± (0.000° to 999.999°), D: ± (0.000000 to 9.999999)
	Q: ± (0.00 to 99999.99), Δ%: ± (0.0000% to 999.9999%)
Basic accuracy	Z : ±0.05%rdg. θ: ±0.03°
Measurement frequency	1mHz to 200kHz (1mHz to 10Hz steps)
Measurement signal level	[Normal mode]
	V mode, CV mode: 5 mV to 5 Vrms, 1 mVrms steps
	CC mode: 10 μA to 50 mArms, 10 μArms steps
	[Low impedance high accuracy mode]
	V mode, CV mode: 5 mV to 2.5 Vrms, 1 mVrms step
	CC mode: 10 μA to 100 mArms, 10 μArms steps
Output impedance	Normal mode: 100 Ω, Low impedance high accuracy mode: 25 Ω
Display	5.7-inch touch-screen color TFT, display can be set to ON/OFF
Measurement time	2 ms (1 kHz, FAST, display OFF, representative value)
Functions	DC bias measurement, DC resistance temperature compensation
	(converted reference temperature display), Comparator, BIN
	measurement (classify function), Panel loading/saving, Memory function
Interface	EXT I/O (Handler), USB communication (high-speed), USB memory

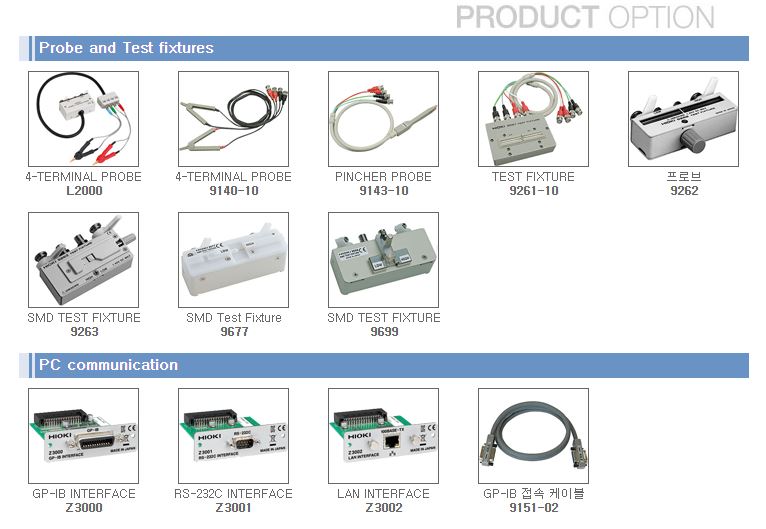

	Optional: Choose 1 from RS-232C, GP-IB, or LAN
Power supply	100 to 240 V AC, 50/60 Hz, 50 VA max
Dimensions, mass	330 mm (12.99 in) W × 119 mm (4.69 in) H × 168 mm (6.61 in) D, 3.1 kg (109.3 oz)
Accessories	Power cord ×1, Instruction Manual ×1, CD-R (Includes PC commands and sample software) ×1
