Model

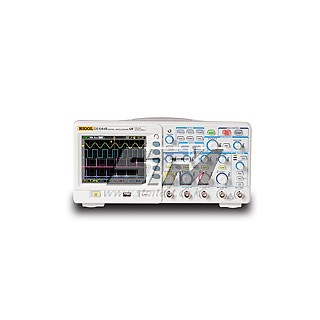

DS1074B / DS1104B / DS1204B

 Bandwidth

70MHz / 100MHz / 200MHz

 Memory Depth

16 kpts（half channel）, 8 kpts（each channel

 Channels

4 channels ＋ external trigger

 Real-time Sample Rate

2 GSa/s（half channel）, 1 GSa/s（each channel）

 Equivalent-time Sample Rate

50 GSa/s

 Rise Time

1.8 ns

 Input Impedance

1 MΩ||18 pF

 Timebase Range

1 ns/div ~ 50 s/div

 Trigger modes

Edge, Video, Pulse Width, Alternate, pattern trigger across 4 analog channels

 Vertical Sensitivity

2 mV/div ~ 10 V/div

 Vertical Resolution

8 bits

 Maximum Input Voltage

All Inputs 1MΩ||18pF 300Vrms Max CAT I

 Cursor Measurement

Manual, Track and Auto Measure modes.

 Automatic Measurements

Vpp, Vamp, Vmax, Vmin, Vtop, Vbase, Vavg, Vrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall time, Positive Width, Negative Width, Positive Duty Cycle, Negative Duty Cycle, Time Delay A→B, Time Delay A→B, Phase Delay A→B,- Phase Delay A→B

 Math

＋, －, ×, FFT

 Internal Storage

10 waveforms, 10 setups

 USB Storage

8 bits BMP, 24 bits BMP, PNG,CSV,Waveforms and Setups against USB flash drive’s limit

 Connectivity

USB Device, dual USB Host, LXI-C compliant LAN

 Display

5.7” TFT QVGA(320×240) with 64K color LED backlight display

 Power Supply

AC:100-127V,45Hz-440Hz;100-240V,45Hz-65Hz. 60VA Max
