MR-8870-20 요약정보 및 구매

상품 선택옵션 0 개, 추가옵션 0 개

제조사 HIOKI
브랜드 HIOKI
모델 MR-8870
판매가격 1,800,000원
배송비결제 주문시 결제

선택된 옵션

  • MR-8870-20 (+0원)
  • 카탈로그
  • 메뉴얼
  • 프로그램
  • 드라이버
  • 데이터시트

상품 정보

상품 상세설명

CAT III 600V의 절연 성능, 480V 라인을 직접 측정 가능

4ch 절연 입력 (3상 전원 라인 +1 ch 동시 기록 가능)
극한 환경에서도 정상작동(온도 범위 : -10 ℃ ~ 50 ℃)
충격과 진동에 강한 설계

내비게이션 기능으로 간단한 조작가능

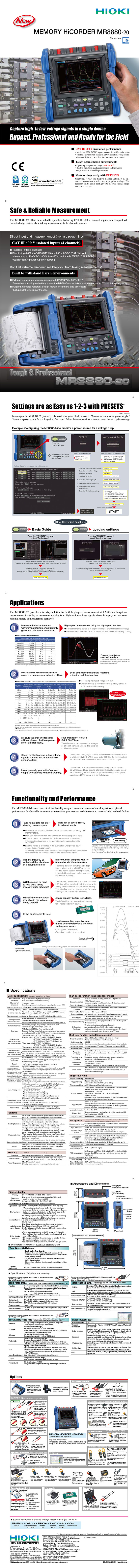

ad6de3efe979ba8e5ecb48e5f8e4a447_1490663






Basic specifications

Number of channels4 analog channels + 8 logic channels (standard) Note: Isolated analog channels, isolated input and frame, logic has common GND
Measurement ranges
(10 div full-scale)
4 channels of voltage measurement; mode switchable between instantaneous waveform, or RMS value
10 mV to 100 V/div, 13 ranges, resolution: 1/640 of range
RMS value mode: 30 Hz to 10 kHz, Crest factor: 2
Max. rated voltageBetween terminals: 600 VAC, DC
Between terminal to earth: 600 VAC, DC CAT III, 300 VAC, DC CAT IV
Frequency characteristicsDC to 100 kHz (±3dB)
Time axis (High-speed function)100 μs to 100 ms/div, 10 ranges, Sampling period: 1/100 of range
Recording intervals (Real-time function)100 μs to 1 minute, 19 selections (simultaneous sampling in all channels)
Measurement functionsHigh-speed function (high speed recording)
Real-time function (actual time recording)
Memory capacity14-bits × 1M-Words/ch (1 word = 2 bytes)
Removable storageCF Card slot ×1 (Up to 2 GB), USB 2.0 memory ×1
Printing[Printer unit is option] 112 mm (4.41 in) × 18 m (59.06 ft), thermal paper roll, Recording speed : 10 mm (0.39 in)/sec
Note: Printing is not supported when using alkaline batteries
Display5.7-inch VGA-TFT color LCD (640 × 480 dots)
Displayable languagesEnglish, Japanese, Chinese
Communication interfacesUSB 2.0 mini-B receptacle × 1; Transfers files from the installed CF card or USB memory stick to a PC when connected, and External PC control
Power supplyAC ADAPTER Z1002: 100 to 240 VAC (50/60 Hz), 11 VA (when Real-time recording) , 40 VA (when Real-time recording and printing)
BATTERY PACK Z1000: AC adapter has priority when used in combination with battery pack, recharge with AC adapter 3 hours, Continuous use 3 hours (at back-light ON)
LR6 (AA) alkaline batteries × 8, Continuous use 40 minutes, (with back-light ON, cannot be used with the PRINTER UNIT)
DC power supply: 10 to 28 VDC (cable available by special order)
Dimensions, mass205 mm (8.07 in) W × 199 mm (7.83 in) H × 67 mm (2.64 in) D, 1.66 kg (58.6 oz) (with the BATTERY PACK installed)
When printer is combined - with main unit: 303 mm (11.93 in) W × 199 mm (7.83 in) H × 67 mm (2.64 in) D, 2.16 kg (76.2 oz) (with the BATTERY PACK installed)
Supplied accessoriesInstruction Manual × 1, AC ADAPTER Z1002 × 1, Alkaline battery box × 1, Strap × 1, USB cable × 1, Application Disk (Wave Viewer Wv, Communication Commands table) × 1







ad6de3efe979ba8e5ecb48e5f8e4a447_1490663






옵션 - 전화문의

ad6de3efe979ba8e5ecb48e5f8e4a447_1490663
ad6de3efe979ba8e5ecb48e5f8e4a447_1490663
ad6de3efe979ba8e5ecb48e5f8e4a447_1490663
