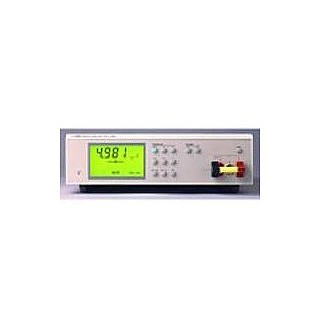

| Technical Specifications |
| AC test mode | | Test frequency: | 1 kHz | | Test frequency accuracy: | 0.025% | | Test signal level: | 2V via 400Ω source | | Basic measurement accuracy: | 0.25% ± 1 digit |
|
| DC bias | |
| Maximum measurement ranges | | Impedance/Resistance Z or RAC: | 0.000Ω to 200 MΩ | | Capacitance C: | 0.0 pF to 100 mF | | Inductance L: | 0.0 mH to 32 kH | | Quality factor Q: | : 0.0002 to 500 | | Dissipation factor D: | 0.002 to 500 | | Phase angle F: | -90.0 to +90.0 deg |
|
| Maximum resolution | | Impedance/Resistance Z or RAC: | 01 MΩ | | Capacitance C: | 0.1 pF | | Inductance L: | 0.1 mH | | Quality factor Q: | 0.001 | | Dissipation factor D: | 0.001 | | Phase angle F: | 0.1 deg |
|
| Circuit diagram |
| 7 different equivalent circuit diagrams |
|
| Auto mode | | Read-out: | Dominant parameter | | Equivalent circuit diagram: | Parallel for R+C |
| Serial for R+L |
|
| Manual Mode | | Read-out: | Dominant or secondary parameter | | Equivalent circuit diagram: | Parallel or serial selectable |
|
| Measurement update rate | |
| Trim function | | Open circuit: | Open circuit compensation |
| Z > 100 kΩ | | Short circuit: | Short circuit compensation |
| Z < 10Ω |
|
| Stored settings (non-volatile memory) | | Front panel settings: | 1 (trim figures included) |
|
| Calibration Interval | |
| Environmental Conditions | | Operating temperature: | 0°C to 50°C | | Storage temperature: | -40°C to 70°C | | Power requirements: | 100/120/220/240V ± 10% | | Line frequency: | 50 to 100 Hz | | Power consumption: | 16 VA | | Safety: | According to CE-regulation 73/23 EN61010-1 CAT II, Pollution Degree 2 | | EMC: | According to CE regulation 89/336: Emission according to EN 55011, Group 1 Class B, respectively CISPR 11. Immunity according to EN 50082-1, inclusive IEC 801-2, -3, -4 | | Warm-up time: | 5 minutes |
|
| Dimensions and weight | | W x H x D: | 315 x 105 x 401 mm (12.4 in x 4.13 in x 15.9 in) | | Weight: | 3.8 kg (8.4 lb) |
|
